Search › Model › ASU40
ASU40

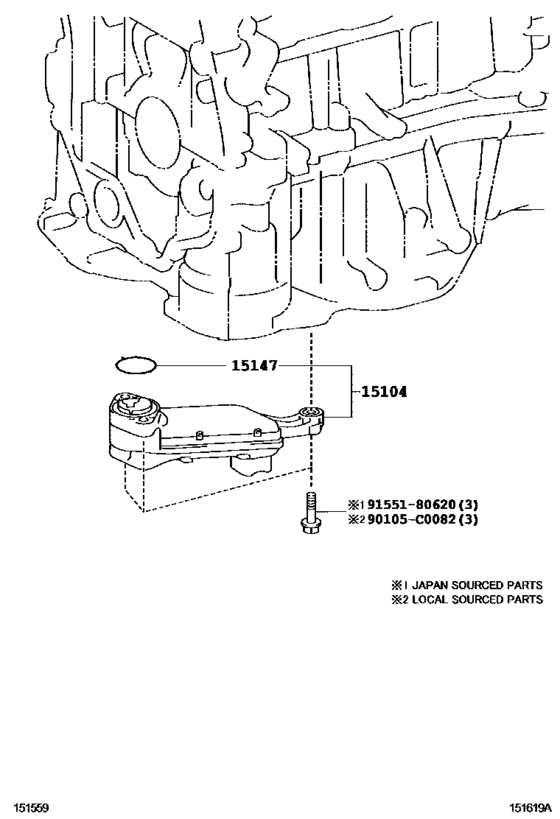

Engine Oil Pump ([05.2009 - ] (0905- )1ARFE) 6
| # | OEM | Part name |
|---|---|---|
| 15104 | 15104-0V010 | Strainer Sub-Assy, Oil |
| 15104 | 15104-36020 | Strainer Sub-Assy, Oil |
| 15147 | 15147-0V010 | Gasket, Oil Strainer |
| 15147 | 15147-36010 | Gasket, Oil Strainer |
| 90105 | 90105-C0082 | New Genuine Part |
| 9155180620 | 91551-80620 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 15104-0V010 | Strainer Sub-Assy, Oil | Engine Oil Pump ([05.2009 - ] (0905- )1ARFE) |
| 15104-36020 | Strainer Sub-Assy, Oil | Engine Oil Pump ([05.2009 - ] (0905- )1ARFE) |
| 15147-0V010 | Gasket, Oil Strainer | Engine Oil Pump ([05.2009 - ] (0905- )1ARFE) |
| 15147-36010 | Gasket, Oil Strainer | Engine Oil Pump ([05.2009 - ] (0905- )1ARFE) |
| 90105-C0082 | New Genuine Part | Engine Oil Pump ([05.2009 - ] (0905- )1ARFE) |
| 91551-80620 | Bolt | Engine Oil Pump ([05.2009 - ] (0905- )1ARFE) |
