ASU40

Toyota HIGHLANDER-KLUGER · 2008 · 4,733 parts · 214 categories
ASU40 ×

← Back to categories

4,733 items

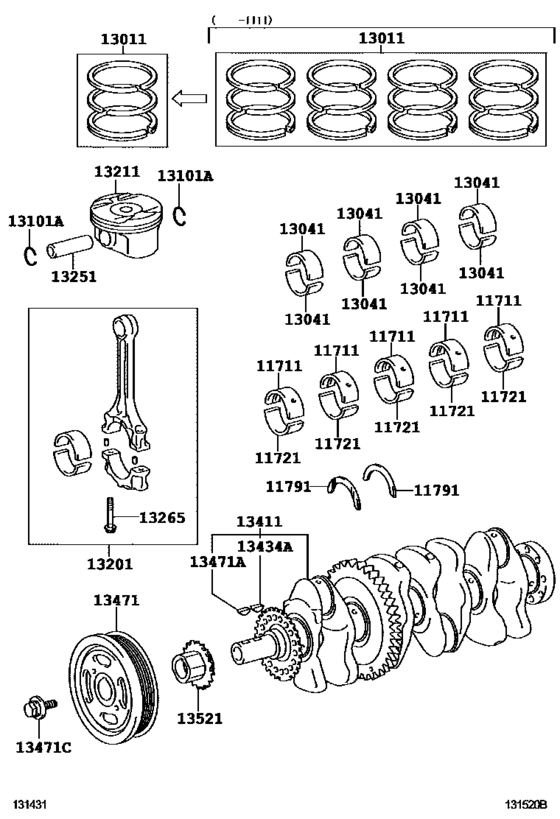

Crankshaft & Piston ([05.2009 - ] (0905- )1ARFE) 80
#OEMPart name
11711 11711-0V020-01 Bearing, Crankshaft
11711 11711-0V020-02 Bearing, Crankshaft
11711 11711-0V020-03 Bearing, Crankshaft
11711 11711-0V020-04 Bearing, Crankshaft
11711 11711-0V040-01 Bearing, Crankshaft
11711 11711-0V040-02 Bearing, Crankshaft
11711 11711-0V040-03 Bearing, Crankshaft
11711 11711-0V040-04 Bearing, Crankshaft
11711 11711-36020-01 Bearing, Crankshaft
11711 11711-36020-02 Bearing, Crankshaft
11711 11711-36020-03 Bearing, Crankshaft
11711 11711-36020-04 Bearing, Crankshaft
11721 11721-0V020-01 Bearing, Crankshaft, No.2
11721 11721-0V020-02 Bearing, Crankshaft, No.2
11721 11721-0V020-03 Bearing, Crankshaft, No.2
11721 11721-0V020-04 Bearing, Crankshaft, No.2
11721 11721-0V040-01 Bearing, Crankshaft, No.2
11721 11721-0V040-02 Bearing, Crankshaft, No.2
11721 11721-0V040-03 Bearing, Crankshaft, No.2
11721 11721-0V040-04 Bearing, Crankshaft, No.2
11721 11721-36020-01 Bearing, Crankshaft, No.2
11721 11721-36020-02 Bearing, Crankshaft, No.2
11721 11721-36020-03 Bearing, Crankshaft, No.2
11721 11721-36020-04 Bearing, Crankshaft, No.2
11791 11791-0V020 Washer, Crankshaft Thrust, Upper
11791 11791-36010 Washer, Crankshaft Thrust, Upper
13011 13011-0V050 Ring Set, Piston
13011 13011-36020 Ring Set, Piston
13011 13011-36061 Ring Set, Piston
13041 13281-0V020-01 Bearing, Connecting Rod
13041 13281-0V021-01 Bearing, Connecting Rod
13041 13281-0V020-02 Bearing, Connecting Rod
13041 13281-0V021-02 Bearing, Connecting Rod
13041 13281-0V020-03 Bearing, Connecting Rod
13041 13281-0V021-03 Bearing, Connecting Rod
13041 13281-36020-01 Bearing, Connecting Rod
13041 13281-36021-01 Bearing, Connecting Rod
13041 13281-36020-02 Bearing, Connecting Rod
13041 13281-36021-02 Bearing, Connecting Rod
13041 13281-36020-03 Bearing, Connecting Rod
13041 13281-36021-03 Bearing, Connecting Rod
13101 90520-22025 Ring, Hole Snap(For Piston Pin)
13201 13201-09A80-A0 Rod Sub-Assy, Connecting
13201 13201-39226-A0 Rod Sub-Assy, Connecting
13201 13201-09A81-A0 Rod Sub-Assy, Connecting
13201 13201-09A80-B0 Rod Sub-Assy, Connecting
13201 13201-39226-B0 Rod Sub-Assy, Connecting
13201 13201-09A81-B0 Rod Sub-Assy, Connecting
13201 13201-09A80-C0 Rod Sub-Assy, Connecting
13201 13201-39226-C0 Rod Sub-Assy, Connecting
13201 13201-09A81-C0 Rod Sub-Assy, Connecting
13201 13201-39225-A0 Rod Sub-Assy, Connecting
13201 13201-39225-B0 Rod Sub-Assy, Connecting
13201 13201-39225-C0 Rod Sub-Assy, Connecting
13211 13211-0V060-A0 Piston
13211 13211-0V060-B0 Piston
13211 13211-0V060-C0 Piston
13211 13211-36040-A0 Piston
13211 13211-36041-A0 Piston
13211 13211-36040-B0 Piston
13211 13211-36041-B0 Piston
13211 13211-36040-C0 Piston
13211 13211-36041-C0 Piston
13251 13251-0H040-A0 Pin, Piston
13251 13251-0H040-B0 Pin, Piston
13251 13251-0H040-C0 Pin, Piston
13251 13251-28020-A0 Pin, Piston
13251 13251-28020-B0 Pin, Piston
13251 13251-28020-C0 Pin, Piston
13265 13265-31020 Bolt, Connecting Rod
13411 13401-0V030 Crankshaft
13411 13401-36021 Crankshaft
13411 13401-0V031 Crankshaft
13411 13401-36020 Crankshaft
13434 95161-30516 Key(For Oil Pump Drive Spline)
13471 13470-0V030 Pulley, Crankshaft
13471 13470-36010 Pulley, Crankshaft
13471 90119-16020 Bolt(For Crankshaft Pulley Set)
13521 13521-0V020 Gear Or Sprocket, Crankshaft Timing
13521 13521-36010 Gear Or Sprocket, Crankshaft Timing
