Search › Model › ASU40
ASU40

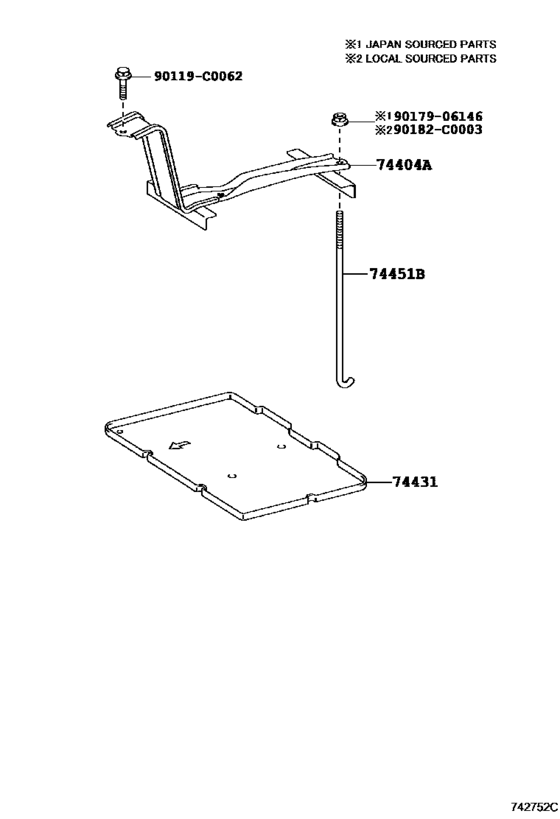

Battery Carrier ([05.2009 - ] (0905- )) 6
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-0E030 | Clamp Sub-Assy, Battery |
| 74431 | 74431-0E030 | Tray, Battery |
| 74451 | 74452-48010 | Bolt, Battery Clamp |
| 90119 | 90119-C0062 | New Genuine Part |
| 90182 | 90182-C0003 | New Genuine Part |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-0E030 | Clamp Sub-Assy, Battery | Battery Carrier ([05.2009 - ] (0905- )) |
| 74431-0E030 | Tray, Battery | Battery Carrier ([05.2009 - ] (0905- )) |
| 74452-48010 | Bolt, Battery Clamp | Battery Carrier ([05.2009 - ] (0905- )) |
| 90119-C0062 | New Genuine Part | Battery Carrier ([05.2009 - ] (0905- )) |
| 90179-06146 | Nut | Battery Carrier ([05.2009 - ] (0905- )) |
| 90182-C0003 | New Genuine Part | Battery Carrier ([05.2009 - ] (0905- )) |
