ASU

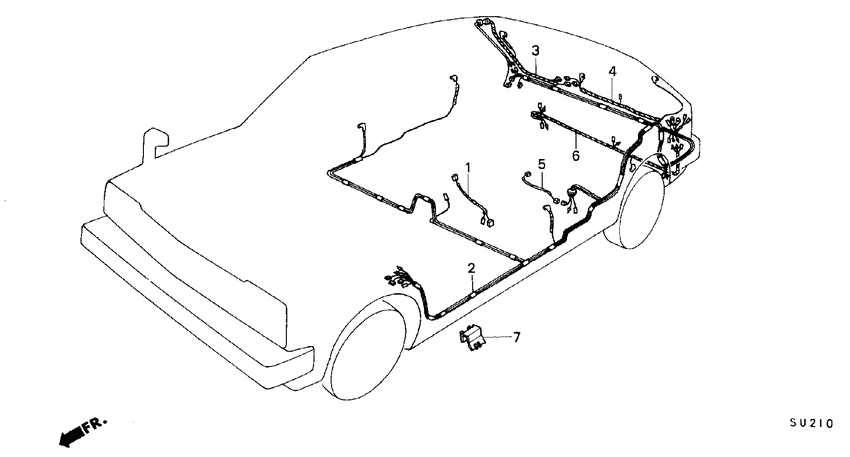

Wire harness (2; B,BP,D,F,G,S,W,X) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 32105-693-720 | Sub cord - HONDAMATIC |
| 2 | 32107-693-622 | Harness - SIDE WIRE |
| 3 | 32109-693-620 | Cord a - TAILGATE |
| 4 | 32159-693-620 | Cord b - TAILGATE |
| 5 | 32170-693-010 | Cord - FUEL UNIT |
| 6 | 32180-693-621 | Cord - LICENSE LIGHT |
| 7 | 32874-693-670 | Protector - SIDE WIRE HARNESS |
| OEM | Part name | Category |
|---|---|---|
| 32105-693-720 | Sub cord - HONDAMATIC | Wire harness (2; B,BP,D,F,G,S,W,X) |
| 32107-693-622 | Harness - SIDE WIRE | Wire harness (2; B,BP,D,F,G,S,W,X) |
| 32109-693-620 | Cord a - TAILGATE | Wire harness (2; B,BP,D,F,G,S,W,X) |
| 32159-693-620 | Cord b - TAILGATE | Wire harness (2; B,BP,D,F,G,S,W,X) |
| 32170-693-010 | Cord - FUEL UNIT | Wire harness (2; B,BP,D,F,G,S,W,X) |
| 32180-693-621 | Cord - LICENSE LIGHT | Wire harness (2; B,BP,D,F,G,S,W,X) |
| 32874-693-670 | Protector - SIDE WIRE HARNESS | Wire harness (2; B,BP,D,F,G,S,W,X) |
