ASU

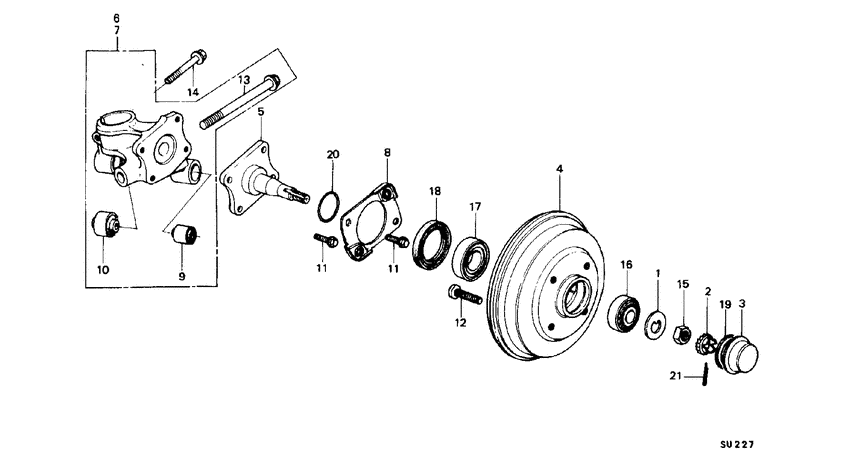

Rear brake drum 29
| # | OEM | Part name |
|---|---|---|
| 1 | 42324-671-010 | Washer - RR. HUB |
| 2 | 42325-671-000 | Holder - SPLIT PIN |
| 3 | 42326-SA0-000 | Cap - HUB |
| 4 | 42610-SA3-010 | Drum - RR. BRAKE |
| 5 | 52200-692-000 | Spindle - RR. WHEEL |
| 6 | 52210-693-010 | Carrier comp. - R. RR. HUB |
| 7 | 52215-693-010 | Carrier comp. - L. RR. HUB |
| 8 | 52221-692-000 | Plate - RR. SPINDLE BOLT LOCK |
| 9 | 52382-692-004 | Bush a - RR. RADIUS ARM |
| 10 | 52383-692-004 | Bush c - RR. RADIUS ARM |
| 11 | 90001-692-010 | Bolt - HEX., 10X25 |
| 12 | 90113-SA0-013 | Bolt - WHEEL (TOKAI TRW) |
| 12 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) |
| 12 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) |
| 12 | 90113-SA0-005 | Bolt - WHEEL (NAGOYA RASHI) |
| 12 | 90113-SA0-015 | Bolt - WHEEL (NAGOYA RASHI) |
| 13 | 90118-SA0-000 | Bolt - LOWER ARM |
| 14 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 14 | 90120-693-013 | Bolt - FR. SHOCK ABSORBER LOCK |
| 15 | 90402-SA0-000 | Nut - HUB |
| 16 | 91052-671-008 | Bearing assy - RR. HUB (A) (TOYO SEIKO) |
| 16 | 91052-671-004 | Bearing assy - RR. HUB (A) (KOYO SEIKO) |
| 17 | 91053-671-008 | Bearing assy - RR. HUB (B) (TOYO SEIKO) |
| 17 | 91053-671-004 | Bearing assy - RR. HUB (B) (KOYO SEIKO) |
| 18 | 91252-692-003 | Seal - RR. HUB (ARAI) |
| 18 | 91252-692-005 | Seal - RR. HUB (NOK) |
| 19 | 91301-567-003 | O-ring - 44X1.3 |
| 20 | 91352-692-005 | O-ring - 41.5X2.8 (NOK) |
| 20 | 91352-692-003 | O-ring - 41.5X2.8 (ARAI) |
| OEM | Part name | Category |
|---|---|---|
| 42324-671-010 | Washer - RR. HUB | Rear brake drum |
| 42325-671-000 | Holder - SPLIT PIN | Rear brake drum |
| 42326-SA0-000 | Cap - HUB | Rear brake drum |
| 42610-SA3-010 | Drum - RR. BRAKE | Rear brake drum |
| 52200-692-000 | Spindle - RR. WHEEL | Rear brake drum |
| 52210-693-010 | Carrier comp. - R. RR. HUB | Rear brake drum |
| 52215-693-010 | Carrier comp. - L. RR. HUB | Rear brake drum |
| 52221-692-000 | Plate - RR. SPINDLE BOLT LOCK | Rear brake drum |
| 52382-692-004 | Bush a - RR. RADIUS ARM | Rear brake drum |
| 52383-692-004 | Bush c - RR. RADIUS ARM | Rear brake drum |
| 90001-692-010 | Bolt - HEX., 10X25 | Rear brake drum |
| 90113-SA0-005 | Bolt - WHEEL (NAGOYA RASHI) | Rear brake drum |
| 90113-SA0-013 | Bolt - WHEEL (TOKAI TRW) | Rear brake drum |
| 90113-SA0-015 | Bolt - WHEEL (NAGOYA RASHI) | Rear brake drum |
| 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Rear brake drum |
| 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Rear brake drum |
| 90118-SA0-000 | Bolt - LOWER ARM | Rear brake drum |
| 90120-693-013 | Bolt - FR. SHOCK ABSORBER LOCK | Rear brake drum |
| 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Rear brake drum |
| 90402-SA0-000 | Nut - HUB | Rear brake drum |
| 91052-671-004 | Bearing assy - RR. HUB (A) (KOYO SEIKO) | Rear brake drum |
| 91052-671-008 | Bearing assy - RR. HUB (A) (TOYO SEIKO) | Rear brake drum |
| 91053-671-004 | Bearing assy - RR. HUB (B) (KOYO SEIKO) | Rear brake drum |
| 91053-671-008 | Bearing assy - RR. HUB (B) (TOYO SEIKO) | Rear brake drum |
| 91252-692-003 | Seal - RR. HUB (ARAI) | Rear brake drum |
| 91252-692-005 | Seal - RR. HUB (NOK) | Rear brake drum |
| 91301-567-003 | O-ring - 44X1.3 | Rear brake drum |
| 91352-692-003 | O-ring - 41.5X2.8 (ARAI) | Rear brake drum |
| 91352-692-005 | O-ring - 41.5X2.8 (NOK) | Rear brake drum |
