ASU

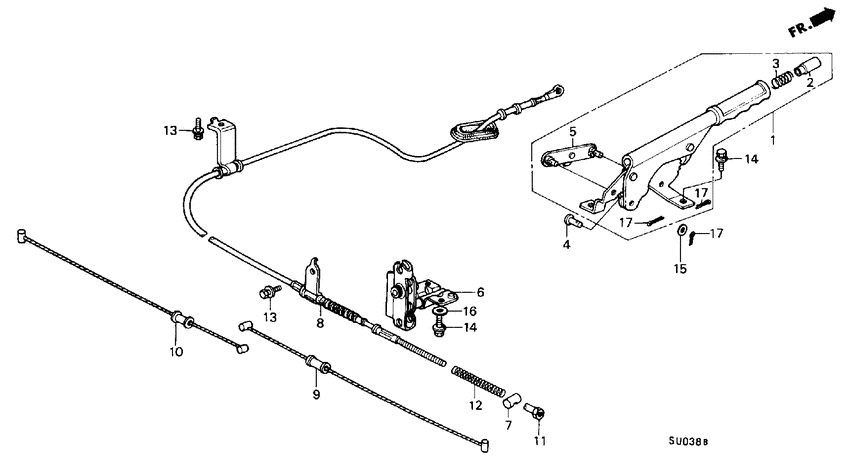

Parking brake 13
| # | OEM | Part name |
|---|---|---|
| 1 | 47105-693-601 | Lever assy. - PARKING BRAKE |
| 2 | 47142-659-310 | Knob - PARKING BRAKE PUSH ROD |
| 2 | 47142-671-010 | Knob - PARKING BRAKE PUSH ROD |
| 3 | 47143-671-310 | Spring - PUSH ROD |
| 4 | 47153-SA0-000 | Pin b - PARKING BRAKE |
| 5 | 47342-SA0-003 | Switch - PARKING BRAKE |
| 6 | 47360-671-671 | Equalizer comp. |
| 7 | 47365-538-000 | Pin - EQUALIZER |
| 8 | 47510-693-003 | Wire a - PARKING BRAKE |
| 9 | 47520-693-670 | Wire b - PARKING BRAKE |
| 10 | 47521-693-670 | Wire c - PARKING BRAKE |
| 11 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING |
| 12 | 47537-671-670 | Spring - PARKING BRAKE ROD |
| OEM | Part name | Category |
|---|---|---|
| 47105-693-601 | Lever assy. - PARKING BRAKE | Parking brake |
| 47142-659-310 | Knob - PARKING BRAKE PUSH ROD | Parking brake |
| 47142-671-010 | Knob - PARKING BRAKE PUSH ROD | Parking brake |
| 47143-671-310 | Spring - PUSH ROD | Parking brake |
| 47153-SA0-000 | Pin b - PARKING BRAKE | Parking brake |
| 47342-SA0-003 | Switch - PARKING BRAKE | Parking brake |
| 47360-671-671 | Equalizer comp. | Parking brake |
| 47365-538-000 | Pin - EQUALIZER | Parking brake |
| 47510-693-003 | Wire a - PARKING BRAKE | Parking brake |
| 47520-693-670 | Wire b - PARKING BRAKE | Parking brake |
| 47521-693-670 | Wire c - PARKING BRAKE | Parking brake |
| 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Parking brake |
| 47537-671-670 | Spring - PARKING BRAKE ROD | Parking brake |
