ASU

Honda QUINTET · 1982 · 2,283 parts · 137 categories
ASU ×

← Back to categories

2,283 items

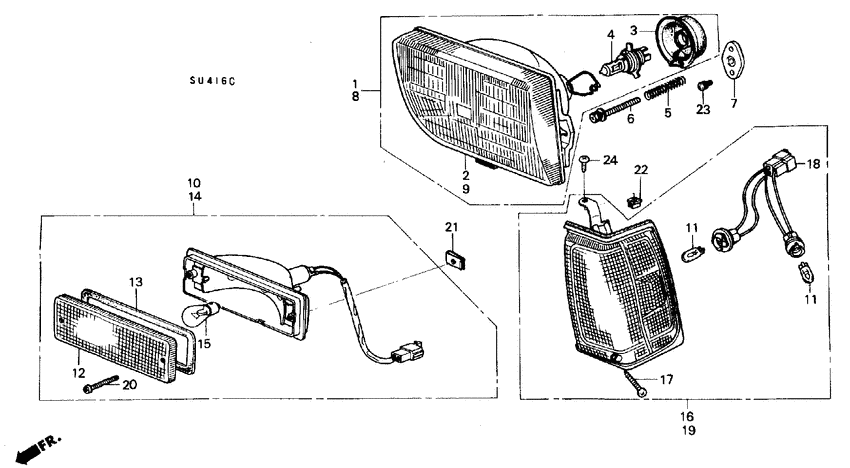

Headlight/ front combination light 26
#OEMPart name
1 33100-693-742 Headlight assy - R. (BOSCH)
1 33100-693-741 Headlight assy - R.
2 33111-693-731 Lens & housing comp. - R. HEADLIGHT
3 33112-671-612 Cover - RUBBER (STANLEY)
3 33112-693-742 Cap
4 33115-SA5-612 Bulb - HEADLIGHT (OSRAM)
4 33115-692-741 Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)
5 33141-693-003 Spring - ADJUSTING
6 33142-693-013 Screw - ADJUSTING
7 33145-693-003 Nut - SPECIAL
8 33150-693-742 Headlight assy - L. (BOSCH)
8 33150-693-741 Headlight assy - L.
9 33161-693-731 Lens & housing comp. - L. HEADLIGHT
10 33300-693-613 Light assy - R. FR. TURN SIGNAL
11 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY)
12 33302-692-672 Lens - FR. COMBINATION LIGHT
13 33303-692-003 Packing - STANLEY
13 33303-958-003 Gasket
14 33350-693-613 Light assy - L. FR. TURN SIGNAL
16 34300-693-731 Lamp assy. - R. FR. POSITION & SIDE TURN SIGNAL
17 34302-693-003 Screw - TAPPING, 4X30
18 34305-693-731 Cord comp
19 34350-693-731 Lamp assy. - L. FR. POSITION & SIDE TURN SIGNAL
20 90140-SA0-003 Screw - TAPPING, 4X38
21 90303-SA5-003 Nut - FR. COMBINATION LIGHT
22 90662-671-003 Grommet - SCREW, 5MM (WHITE)
