Search › Model › ASU
ASU

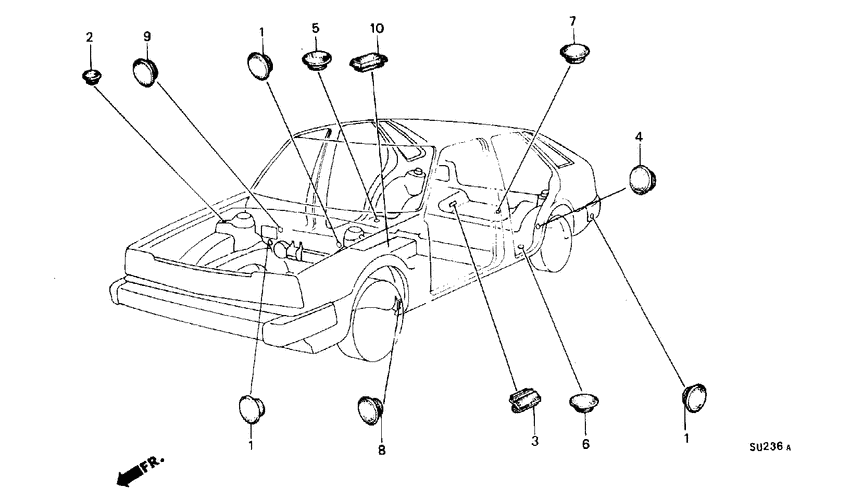

Grommet/insulator 11
| # | OEM | Part name |
|---|---|---|
| 1 | 60852-568-680 | Plug - HEATER LEVER HOLE |
| 2 | 70226-611-000 | Plug - SETTING HOLE |
| 3 | 70579-672-010 | Valve - DRAIN |
| 4 | 73871-538-000 | Grommet - DOOR SWITCH |
| 4 | 91612-SA5-000 | Grommet - DOOR SWITCH (BLACK) (DIAMETER=20MM) |
| 5 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 6 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM |
| 7 | 82871-692-000 | Grommet - DRAIN HOLE |
| 8 | 90856-SA0-000 | Plug - COATING HOLE, 25MM |
| 9 | 90862-SA0-980 | Plug - CLUTCH CABLE HOLE |
| 10 | 90865-SA0-000 | Plug - CONTROL WIRE |
| OEM | Part name | Category |
|---|---|---|
| 60852-568-680 | Plug - HEATER LEVER HOLE | Grommet/insulator |
| 70226-611-000 | Plug - SETTING HOLE | Grommet/insulator |
| 70579-672-010 | Valve - DRAIN | Grommet/insulator |
| 73871-538-000 | Grommet - DOOR SWITCH | Grommet/insulator |
| 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Grommet/insulator |
| 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet/insulator |
| 82871-692-000 | Grommet - DRAIN HOLE | Grommet/insulator |
| 90856-SA0-000 | Plug - COATING HOLE, 25MM | Grommet/insulator |
| 90862-SA0-980 | Plug - CLUTCH CABLE HOLE | Grommet/insulator |
| 90865-SA0-000 | Plug - CONTROL WIRE | Grommet/insulator |
| 91612-SA5-000 | Grommet - DOOR SWITCH (BLACK) (DIAMETER=20MM) | Grommet/insulator |
