ASU

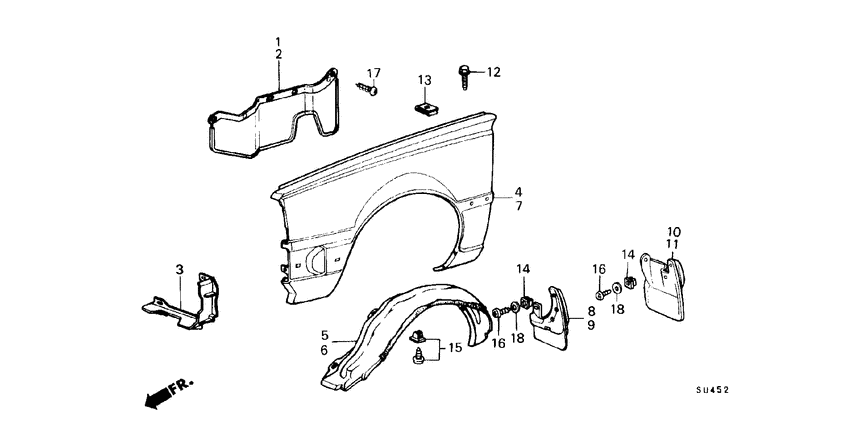

Front fenders 13
| # | OEM | Part name |
|---|---|---|
| 1 | 60518-693-000 | Guard - R. FR. SPLASH |
| 2 | 60568-693-000 | Guard - L. FR. SPLASH |
| 3 | 60817-693-000 | Shelter - AIR HOSE |
| 5 | 61140-693-010 | Cowl assy. - R. FR. INSIDE |
| 6 | 61150-693-010 | Cowl assy. - L. FR. INSIDE |
| 8 | 61810-693-600 | Mudguard - R. FR. |
| 9 | 61820-693-600 | Mudguard - L. FR. |
| 10 | 81810-693-602 | Mudguard - R. RR. |
| 11 | 81820-693-602 | Mudguard - L. RR. |
| 12 | 90147-634-003 | Bolt - FENDER, 6X18 |
| 13 | 90344-692-003 | Nut - CLIP, 6MM |
| 14 | 90662-671-003 | Grommet - SCREW, 5MM (WHITE) |
| 15 | 90673-692-003 | Clip - FR. COWL |
| OEM | Part name | Category |
|---|---|---|
| 60518-693-000 | Guard - R. FR. SPLASH | Front fenders |
| 60568-693-000 | Guard - L. FR. SPLASH | Front fenders |
| 60817-693-000 | Shelter - AIR HOSE | Front fenders |
| 61140-693-010 | Cowl assy. - R. FR. INSIDE | Front fenders |
| 61150-693-010 | Cowl assy. - L. FR. INSIDE | Front fenders |
| 61810-693-600 | Mudguard - R. FR. | Front fenders |
| 61820-693-600 | Mudguard - L. FR. | Front fenders |
| 81810-693-602 | Mudguard - R. RR. | Front fenders |
| 81820-693-602 | Mudguard - L. RR. | Front fenders |
| 90147-634-003 | Bolt - FENDER, 6X18 | Front fenders |
| 90344-692-003 | Nut - CLIP, 6MM | Front fenders |
| 90662-671-003 | Grommet - SCREW, 5MM (WHITE) | Front fenders |
| 90673-692-003 | Clip - FR. COWL | Front fenders |
