ASU

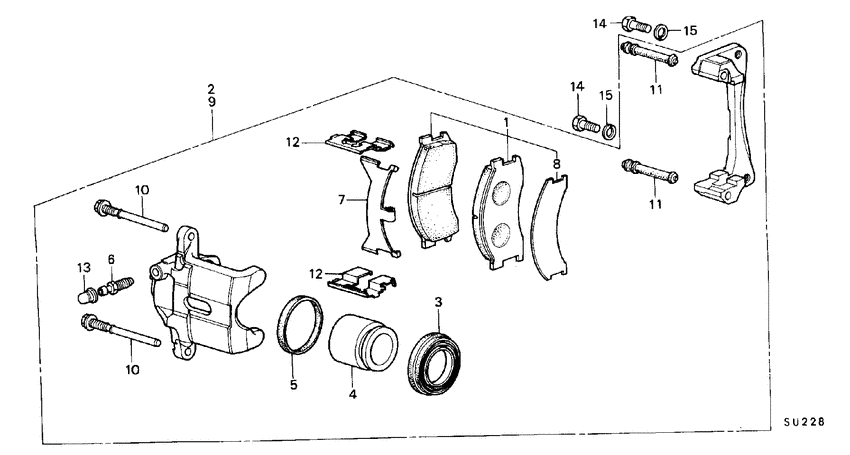

Front brake 14
| # | OEM | Part name |
|---|---|---|
| 1 | 45022-693-601 | Pad set |
| 2 | 45210-693-602 | Caliper assy - R. |
| 3 | 45214-692-671 | Boot - DUST |
| 4 | 45216-692-671 | Piston - CALIPER |
| 5 | 45217-663-671 | Seal - PISTON |
| 6 | 45224-663-671 | Valve - BLEEDER |
| 7 | 45227-693-601 | Spring - PAD |
| 8 | 45228-692-671 | Shim - BRAKE PAD |
| 9 | 45230-693-602 | Caliper assy - L. |
| 10 | 45235-692-671 | Pin - SLIDE |
| 11 | 45236-692-671 | Bush - CALIPER |
| 12 | 45237-693-601 | Retainer - PAD |
| 13 | 45239-663-671 | Cap - BLEEDER |
| 14 | 90107-663-670 | Bolt - CALIPER MOUNTING |
| OEM | Part name | Category |
|---|---|---|
| 45022-693-601 | Pad set | Front brake |
| 45210-693-602 | Caliper assy - R. | Front brake |
| 45214-692-671 | Boot - DUST | Front brake |
| 45216-692-671 | Piston - CALIPER | Front brake |
| 45217-663-671 | Seal - PISTON | Front brake |
| 45224-663-671 | Valve - BLEEDER | Front brake |
| 45227-693-601 | Spring - PAD | Front brake |
| 45228-692-671 | Shim - BRAKE PAD | Front brake |
| 45230-693-602 | Caliper assy - L. | Front brake |
| 45235-692-671 | Pin - SLIDE | Front brake |
| 45236-692-671 | Bush - CALIPER | Front brake |
| 45237-693-601 | Retainer - PAD | Front brake |
| 45239-663-671 | Cap - BLEEDER | Front brake |
| 90107-663-670 | Bolt - CALIPER MOUNTING | Front brake |
