Search › Model › ASU
ASU

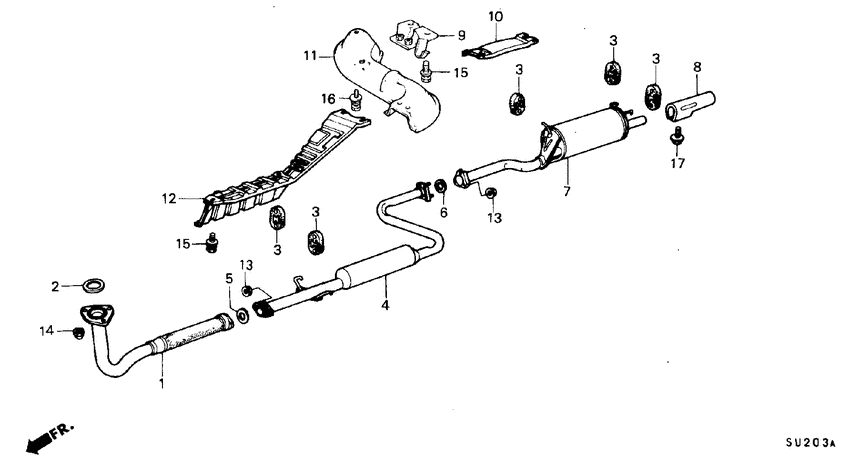

Exhaust pipe 15
| # | OEM | Part name |
|---|---|---|
| 1 | 18210-693-601 | Pipe a - EX. |
| 2 | 18212-671-003 | Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM) |
| 2 | 18212-SA0-003 | Gasket - EX. PIPE(ISHINO) |
| 3 | 18215-SA0-960 | Rubber - SILENCER MOUNTING (70X45X14) |
| 4 | 18220-693-602 | Pipe b - EX. |
| 5 | 18302-659-000 | Gasket - EX. PIPE |
| 6 | 18303-689-000 | Gasket - SILENCER |
| 7 | 18307-693-030 | Silencer comp - EX. |
| 8 | 18310-692-003 | Finisher - EX. PIPE |
| 9 | 70239-693-000 | Bracket - HEAT BAFFLE |
| 10 | 72202-SA0-010 | Plate - SIDE BRAKE HEAT BAFFLE |
| 11 | 72202-693-010 | Plate - TANK HEAT BAFFLE |
| 12 | 72204-693-600 | Plate - CONTROL WIRE BAFFLE |
| 13 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) |
| 14 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM |
| OEM | Part name | Category |
|---|---|---|
| 18210-693-601 | Pipe a - EX. | Exhaust pipe |
| 18212-671-003 | Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM) | Exhaust pipe |
| 18212-SA0-003 | Gasket - EX. PIPE(ISHINO) | Exhaust pipe |
| 18215-SA0-960 | Rubber - SILENCER MOUNTING (70X45X14) | Exhaust pipe |
| 18220-693-602 | Pipe b - EX. | Exhaust pipe |
| 18302-659-000 | Gasket - EX. PIPE | Exhaust pipe |
| 18303-689-000 | Gasket - SILENCER | Exhaust pipe |
| 18307-693-030 | Silencer comp - EX. | Exhaust pipe |
| 18310-692-003 | Finisher - EX. PIPE | Exhaust pipe |
| 70239-693-000 | Bracket - HEAT BAFFLE | Exhaust pipe |
| 72202-693-010 | Plate - TANK HEAT BAFFLE | Exhaust pipe |
| 72202-SA0-010 | Plate - SIDE BRAKE HEAT BAFFLE | Exhaust pipe |
| 72204-693-600 | Plate - CONTROL WIRE BAFFLE | Exhaust pipe |
| 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Exhaust pipe |
| 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Exhaust pipe |
