ASU

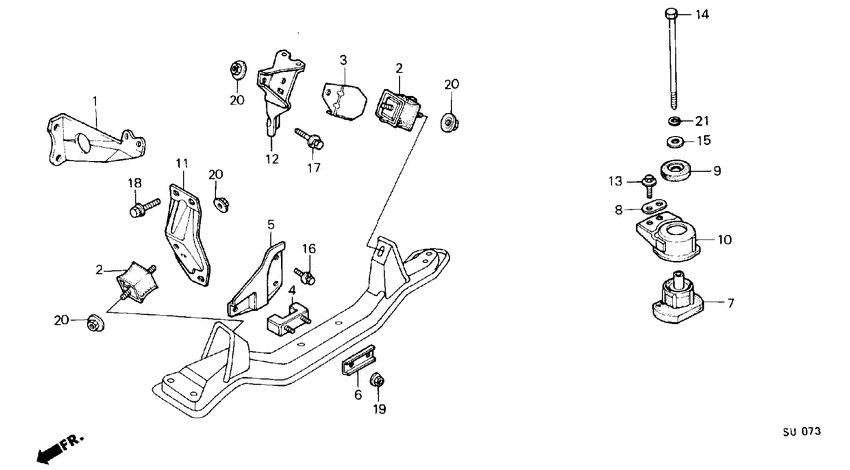

Engine mounts 17
| # | OEM | Part name |
|---|---|---|
| 1 | 11950-PC1-000 | Stiffener - ENGINE |
| 2 | 50811-SA0-020 | Rubber - ENGINE MOUNTING INSULATOR |
| 2 | 50811-SA0-980 | Rubber - ENGINE MOUNTING INSULATOR |
| 3 | 50812-SA0-000 | Insulator - RR. MOUNTING HEAT |
| 4 | 50815-SA0-010 | Rubber - CENTER STOPPER INSULATOR |
| 5 | 50816-SA0-020 | Bracket - CENTER STOPPER |
| 6 | 50817-SA0-000 | Plate - CENTER STOPPER |
| 7 | 50821-SA0-020 | Rubber - ENGINE SIDE INSULATOR |
| 8 | 50822-634-940 | Washer b - MOUNTING RUBBER |
| 9 | 50823-SA0-000 | Stopper - SIDE MOUNTING RUBBER |
| 10 | 50824-693-000 | Bracket - SIDE MOUNTING |
| 11 | 50825-693-000 | Bracket - FR. ENGINE MOUNTING |
| 12 | 50827-693-000 | Bracket - ENGINE RR. MOUNTING |
| 13 | 90116-634-940 | Bolt - HEX., 8X20 |
| 14 | 90130-679-000 | Bolt - LOWER ARM |
| 14 | 90122-SA5-000 | Bolt - SIDE MOUNTING, 10X96 |
| 15 | 90501-579-020 | Washer - EX. MANIFOLD |
| OEM | Part name | Category |
|---|---|---|
| 11950-PC1-000 | Stiffener - ENGINE | Engine mounts |
| 50811-SA0-020 | Rubber - ENGINE MOUNTING INSULATOR | Engine mounts |
| 50811-SA0-980 | Rubber - ENGINE MOUNTING INSULATOR | Engine mounts |
| 50812-SA0-000 | Insulator - RR. MOUNTING HEAT | Engine mounts |
| 50815-SA0-010 | Rubber - CENTER STOPPER INSULATOR | Engine mounts |
| 50816-SA0-020 | Bracket - CENTER STOPPER | Engine mounts |
| 50817-SA0-000 | Plate - CENTER STOPPER | Engine mounts |
| 50821-SA0-020 | Rubber - ENGINE SIDE INSULATOR | Engine mounts |
| 50822-634-940 | Washer b - MOUNTING RUBBER | Engine mounts |
| 50823-SA0-000 | Stopper - SIDE MOUNTING RUBBER | Engine mounts |
| 50824-693-000 | Bracket - SIDE MOUNTING | Engine mounts |
| 50825-693-000 | Bracket - FR. ENGINE MOUNTING | Engine mounts |
| 50827-693-000 | Bracket - ENGINE RR. MOUNTING | Engine mounts |
| 90116-634-940 | Bolt - HEX., 8X20 | Engine mounts |
| 90122-SA5-000 | Bolt - SIDE MOUNTING, 10X96 | Engine mounts |
| 90130-679-000 | Bolt - LOWER ARM | Engine mounts |
| 90501-579-020 | Washer - EX. MANIFOLD | Engine mounts |
