ASU

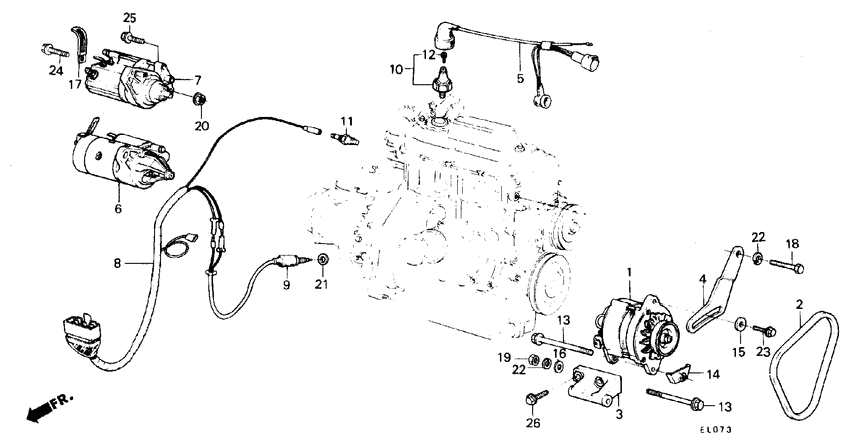

Engine electrical (2) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 31100-PA6-901 | Alternator assy - CKZ31 |
| 2 | 31110-PA6-912 | Belt - ALTERNATOR (BANDO) |
| 2 | 31110-PA6-911 | Belt - ALTERNATOR (MITSUBOSHI) |
| 3 | 31112-PA6-900 | Bracket - ALTERNATOR |
| 5 | 31120-PA6-000 | Harness - ALTERNATOR WIRE |
| 7 | 31200-PC2-014 | Motor assy. - STARTER (DENSO) (DR4FM) |
| 7 | 31200-PC2-662 | Motor assy. - STARTER (DENSO) |
| 8 | 32110-693-621 | Sub cord - ENGINE |
| 9 | 35600-PA5-013 | Switch assy - BACK UP LIGHT |
| 10 | 37240-657-013 | Switch - OIL PRESSURE (DENSO) |
| 10 | 37240-P13-013 | Switch assy - OIL PRESSURE (DENSO) |
| 11 | 37750-PC1-004 | Thermo unit - DENSO |
| 12 | 90002-PA6-003 | Bolt-washer - 4X8 (DENSO) |
| 13 | 90057-671-000 | Bolt - ALTERNATOR |
| 15 | 90430-657-000 | Washer - 23X8.3X3.2 |
| 16 | 90438-611-010 | Washer - SPECIAL, 23X11X2.3 |
| OEM | Part name | Category |
|---|---|---|
| 31100-PA6-901 | Alternator assy - CKZ31 | Engine electrical (2) |
| 31110-PA6-911 | Belt - ALTERNATOR (MITSUBOSHI) | Engine electrical (2) |
| 31110-PA6-912 | Belt - ALTERNATOR (BANDO) | Engine electrical (2) |
| 31112-PA6-900 | Bracket - ALTERNATOR | Engine electrical (2) |
| 31120-PA6-000 | Harness - ALTERNATOR WIRE | Engine electrical (2) |
| 31200-PC2-014 | Motor assy. - STARTER (DENSO) (DR4FM) | Engine electrical (2) |
| 31200-PC2-662 | Motor assy. - STARTER (DENSO) | Engine electrical (2) |
| 32110-693-621 | Sub cord - ENGINE | Engine electrical (2) |
| 35600-PA5-013 | Switch assy - BACK UP LIGHT | Engine electrical (2) |
| 37240-657-013 | Switch - OIL PRESSURE (DENSO) | Engine electrical (2) |
| 37240-P13-013 | Switch assy - OIL PRESSURE (DENSO) | Engine electrical (2) |
| 37750-PC1-004 | Thermo unit - DENSO | Engine electrical (2) |
| 90002-PA6-003 | Bolt-washer - 4X8 (DENSO) | Engine electrical (2) |
| 90057-671-000 | Bolt - ALTERNATOR | Engine electrical (2) |
| 90430-657-000 | Washer - 23X8.3X3.2 | Engine electrical (2) |
| 90438-611-010 | Washer - SPECIAL, 23X11X2.3 | Engine electrical (2) |
