ASU

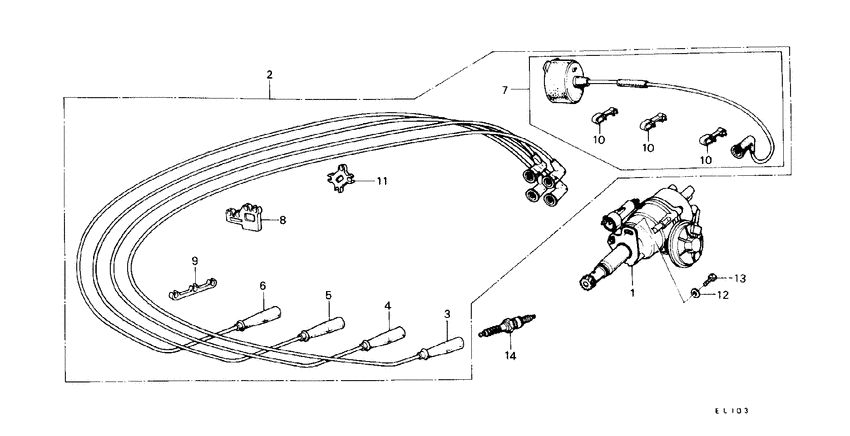

Engine electrical (1) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 30100-PC3-734 | Distributor assy - D4S80-01) (HITACHI |
| 1 | 30100-PC3-736 | Distributor assy - D4S80-01) (HITACHI |
| 1 | 30100-PC3-735 | Distributor assy - TD-20D) (TEC |
| 1 | 30100-PC3-754 | Distributor assy - D4S80-20) (HITACHI |
| 1 | 30100-PC3-756 | Distributor assy - D4S80-02) (HITACHI |
| 1 | 30100-PC3-755 | Distributor assy - TD-03D) (TEC |
| 2 | 32700-665-622 | Wire assy. - SPARK PLUG |
| 3 | 32710-PC3-620 | Wire - PLUG, NO.1 |
| 4 | 32712-PC3-620 | Wire - PLUG, NO.2 |
| 5 | 32713-PC3-620 | Wire - PLUG, NO.3 |
| 6 | 32714-PC3-620 | Wire - PLUG, NO.4 |
| 7 | 32723-665-621 | Cord comp - IGNITION CENTER |
| 8 | 32762-PA0-000 | Clamp - HIGH TENSION CORD |
| 9 | 32764-PC1-000 | Clamp - CORD |
| 11 | 32777-PA0-000 | Clamp - HIGH TENSION CORD |
| 12 | 90482-567-000 | Washer - SPECIAL, 6MM |
| 12 | 90581-831-650 | Washer (18mm) |
| OEM | Part name | Category |
|---|---|---|
| 30100-PC3-734 | Distributor assy - D4S80-01) (HITACHI | Engine electrical (1) |
| 30100-PC3-735 | Distributor assy - TD-20D) (TEC | Engine electrical (1) |
| 30100-PC3-736 | Distributor assy - D4S80-01) (HITACHI | Engine electrical (1) |
| 30100-PC3-754 | Distributor assy - D4S80-20) (HITACHI | Engine electrical (1) |
| 30100-PC3-755 | Distributor assy - TD-03D) (TEC | Engine electrical (1) |
| 30100-PC3-756 | Distributor assy - D4S80-02) (HITACHI | Engine electrical (1) |
| 32700-665-622 | Wire assy. - SPARK PLUG | Engine electrical (1) |
| 32710-PC3-620 | Wire - PLUG, NO.1 | Engine electrical (1) |
| 32712-PC3-620 | Wire - PLUG, NO.2 | Engine electrical (1) |
| 32713-PC3-620 | Wire - PLUG, NO.3 | Engine electrical (1) |
| 32714-PC3-620 | Wire - PLUG, NO.4 | Engine electrical (1) |
| 32723-665-621 | Cord comp - IGNITION CENTER | Engine electrical (1) |
| 32762-PA0-000 | Clamp - HIGH TENSION CORD | Engine electrical (1) |
| 32764-PC1-000 | Clamp - CORD | Engine electrical (1) |
| 32777-PA0-000 | Clamp - HIGH TENSION CORD | Engine electrical (1) |
| 90482-567-000 | Washer - SPECIAL, 6MM | Engine electrical (1) |
| 90581-831-650 | Washer (18mm) | Engine electrical (1) |
