ASU

Honda QUINTET · 1982 · 2,283 parts · 137 categories
ASU ×

← Back to categories

2,283 items

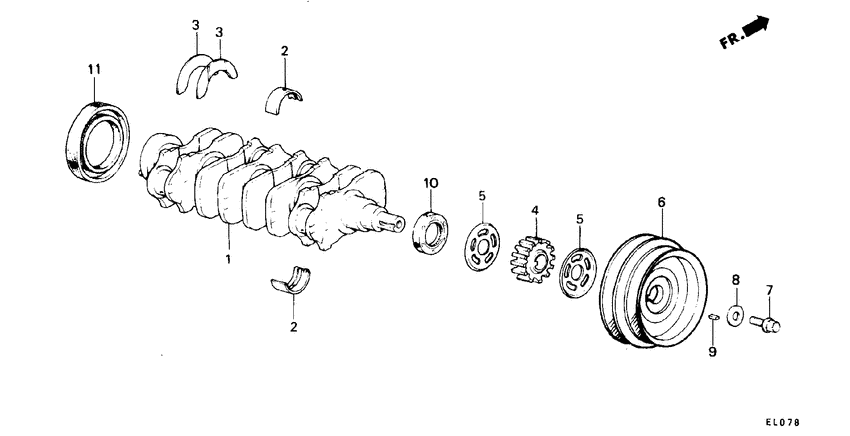

Crankshaft 26
#OEMPart name
1 13310-PB1-000 Crankshaft comp.
2 13325-634-004 Bearing e - MAIN (YELLOW) (TAIHO)
2 13323-634-003 Bearing c - MAIN (BROWN) (DAIDO)
2 13326-634-004 Bearing f - MAIN (PINK) (TAIHO)
2 13324-634-003 Bearing d - MAIN (GREEN) (DAIDO)
2 13321-634-004 BEARING A - MAIN (BLUE) (TAIHO)
2 13327-634-004 Bearing g - MAIN (RED) (TAIHO)
2 13325-634-003 Bearing e - MAIN (YELLOW) (DAIDO)
2 13322-634-004 Bearing b - MAIN (BLACK) (TAIHO)
2 13326-634-003 Bearing f - MAIN (PINK) (DAIDO)
2 13323-634-004 Bearing c - MAIN (BROWN) (TAIHO)
2 13321-634-003 BEARING A - MAIN (BLUE) (DAIDO)
2 13327-634-003 Bearing g - MAIN (RED) (DAIDO)
2 13324-634-004 Bearing d - MAIN (GREEN) (TAIHO)
2 13322-634-003 Bearing b - MAIN (BLACK) (DAIDO)
3 13331-634-003 Washer - THRUST (DAIDO)
3 13331-634-004 Washer - THRUST (TAIHO)
4 13621-657-000 Pulley - TIMING BELT DRIVE
5 13622-PC1-000 Plate - TIMING BELT GUIDE
6 56990-PB3-000 Pulley - CRANKSHAFT
7 90017-PB2-004 Bolt - SPECIAL, 12MM (SAGA)
7 90017-PB2-003 Bolt - SPECIAL, 12MM (SATO)
8 90402-PB2-000 Washer - 12X30X4.5
9 90704-634-000 Key - 4.5X11.0
10 91212-611-003 Oil seal - 35X50X8
11 91214-PB2-003 Oil seal - 76X98X12
