Honda QUINTET · 1982 · 2,283 parts · 137 categories
ASU ×

← Back to categories

2,283 items

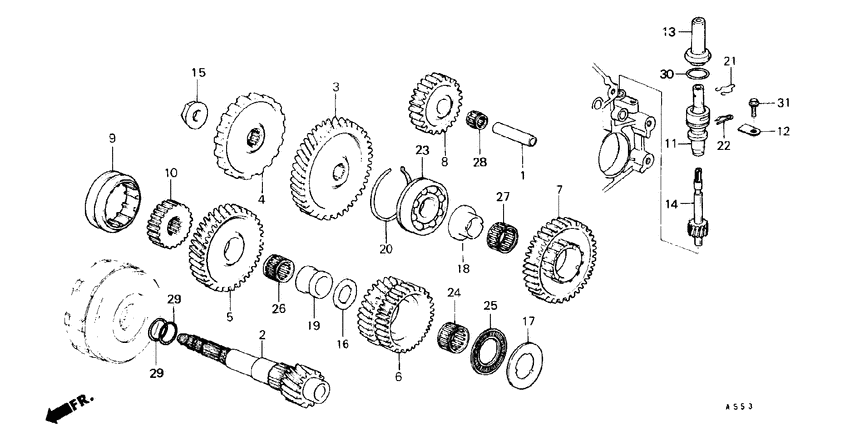

Countershaft/ speedometer gear 45
#OEMPart name
1 13111-360-000 Pin - PISTON
1 13111-444-000 Pin,piston
2 23220-PA9-902 Countershaft
3 23421-PA9-900 Gear - COUNTERSHAFT LOW
4 23422-PA9-901 Gear - PARKING
5 23441-PA9-900 Gear - COUNTERSHAFT SECOND
6 23451-PA9-900 Gear - COUNTERSHAFT THIRD
7 23531-PA9-000 Gear - COUNTERSHAFT REVERSE
8 23541-PA9-010 Gear - REVERSE IDLE
9 23565-639-000 Gear - REVERSE SELECTOR
10 23566-PA9-000 Hub - REVERSE SELECTOR
15 90201-689-900 Nut - HEX., 20MM
16 90408-PA9-000 Washer - THRUST, 28X45X2.55
16 90401-PA9-010 Washer - THRUST, 28 X 45 X 2.30
16 90403-PA9-010 Washer - THRUST, 28 X 45 X 2.40
16 90407-PA9-000 Washer - THRUST, 28 X 45 X 2.50
16 90409-PA9-000 Washer - THRUST, 28X45X2.60
16 90402-PA9-010 Washer - THRUST, 28 X 45 X 2.35
16 90404-PA9-010 Washer - THRUST, 28 X 45 X 2.45
17 90418-PA9-000 Washer - SPLINE, 35X50X3.25
17 90411-PA9-010 Washer - SPLINE, 35X50X3.00
17 90420-PA9-000 Washer - SPLINE, 35X50X3.35
17 90413-PA9-010 Washer - SPLINE, 35X50X3.10
17 90415-PA9-010 Washer - SPLINE, 35X50X3.20
17 90419-PA9-000 Washer - SPLINE, 35X50X3.30
17 90412-PA9-010 Washer - SPLINE, 35X50X3.05
17 90421-PA9-000 Washer - SPLINE, 35X50X3.40
17 90414-PA9-010 Washer - SPLINE, 35X50X3.15
18 90501-PA9-000 Collar - REVERSE GEAR
19 90503-PA9-000 Collar - DISTANCE, 28MM
20 90603-PB6-000 Ring - SNAP, 62MM
23 91004-PA9-003 Bearing - BALL, 6305 (NTN)
24 91011-PA9-004 Bearing - NEEDLE, 32X38X20 (KOYO)
24 91011-PA9-003 Bearing - NEEDLE, 32X38X20 (NTN)
24 91011-PG4-003 Bearing - NEEDLE, 32X38X20 (NTN)
25 91014-PA9-003 Bearing - THRUST NEEDLE, 35X52X2 (NTN)
25 91014-PTD-901 Bearing - THRUST NEEDLE, 35X52X2
26 91016-PA9-004 Bearing - NEEDLE, 28X33X20 (KOYO)
26 91016-PA9-003 Bearing - NEEDLE, 28X33X20 (NTN)
27 91024-PA9-003 Bearing - NEEDLE, 30X36X14 (NTN)
28 91025-639-004 Bearing - NEEDLE, 14X18X15 (KOYO)
28 91025-639-008 Bearing - NEEDLE, 14X18X15 (NTN)
28 91025-639-006 Bearing - NEEDLE, 14X18X15 (THOMPSON)
29 91307-PA9-003 O-ring 31.2X1.9 (ARAI)
29 91307-PA9-004 O-ring - 31.2X1.9 (NOK)
