Search › Model › ASU
ASU

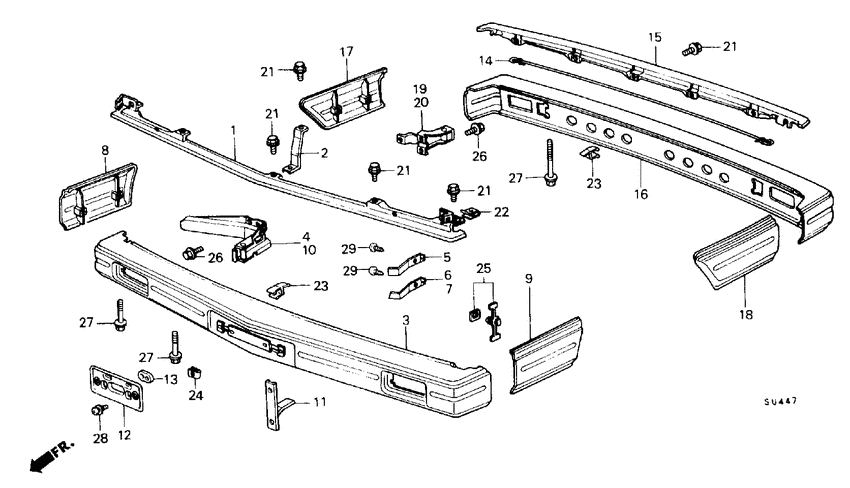

Bumper 15
| # | OEM | Part name |
|---|---|---|
| 3 | 62510-693-010 | Bumper comp. - FR. CENTER |
| 5 | 62522-693-000 | Retainer a |
| 6 | 62523-693-900 | Retainer b |
| 7 | 62524-693-900 | Retainer c |
| 8 | 62525-693-000 | Molding - R. FR. SIDE |
| 9 | 62526-693-000 | Molding - L. FR. SIDE |
| 14 | 80318-692-000 | Rubber - RR. APRON |
| 16 | 84110-693-622 | Bumper comp. - RR. CENTER |
| 17 | 84117-693-010 | Molding - R. RR. SIDE |
| 18 | 84118-693-010 | Molding - L. RR. SIDE |
| 21 | 90147-634-003 | Bolt - FENDER, 6X18 |
| 22 | 90344-692-003 | Nut - CLIP, 6MM |
| 23 | 90671-693-003 | Spacer - BUMPER APRON |
| 24 | 90675-SA5-003 | Nut - CLIP, 6MM |
| 25 | 90678-693-003 | Clip - MOLDING |
| OEM | Part name | Category |
|---|---|---|
| 62510-693-010 | Bumper comp. - FR. CENTER | Bumper |
| 62522-693-000 | Retainer a | Bumper |
| 62523-693-900 | Retainer b | Bumper |
| 62524-693-900 | Retainer c | Bumper |
| 62525-693-000 | Molding - R. FR. SIDE | Bumper |
| 62526-693-000 | Molding - L. FR. SIDE | Bumper |
| 80318-692-000 | Rubber - RR. APRON | Bumper |
| 84110-693-622 | Bumper comp. - RR. CENTER | Bumper |
| 84117-693-010 | Molding - R. RR. SIDE | Bumper |
| 84118-693-010 | Molding - L. RR. SIDE | Bumper |
| 90147-634-003 | Bolt - FENDER, 6X18 | Bumper |
| 90344-692-003 | Nut - CLIP, 6MM | Bumper |
| 90671-693-003 | Spacer - BUMPER APRON | Bumper |
| 90675-SA5-003 | Nut - CLIP, 6MM | Bumper |
| 90678-693-003 | Clip - MOLDING | Bumper |
