ASU

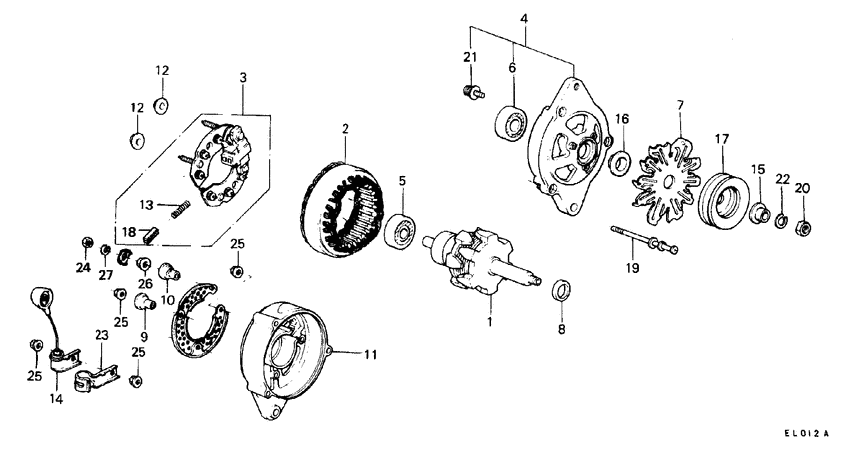

Alternator components 23
| # | OEM | Part name |
|---|---|---|
| 1 | 31101-689-004 | Rotor assy. - ALTERNATOR |
| 2 | 31102-PB2-004 | Stator assy. - ALTERNATOR |
| 3 | 31108-PB2-004 | Sub rectifier assy. |
| 4 | 31109-PB2-004 | Frame assy - DRIVE END |
| 5 | 31111-671-004 | Bearing - RR. |
| 6 | 31114-671-004 | Bearing - FR. |
| 7 | 31115-PB2-004 | Fan - ALTERNATOR |
| 8 | 31116-671-004 | Ring - SPACE |
| 9 | 31118-PA0-662 | Bush - INSULATION |
| 10 | 31119-671-004 | Insulator - TERMINAL |
| 11 | 31121-PB2-004 | Frame - RECTIFIER SIDE END |
| 12 | 31125-671-004 | Washer - INSULATION |
| 13 | 31129-671-004 | Spring - BRUSH |
| 14 | 31130-PA0-662 | Condenser |
| 15 | 31133-PA0-662 | Collar - SPACE |
| 16 | 31134-671-004 | Collar - SPACE |
| 17 | 31141-PA6-004 | Pulley - ALTERNATOR |
| 18 | 31144-671-004 | Brush |
| 19 | 31145-634-671 | Bolt - THROUGH |
| 20 | 38755-590-004 | Nut - PULLEY LOCK |
| 21 | 90093-PB1-004 | Screw-washer - 5X15 |
| 22 | 90094-PB1-004 | Washer - SPRING, 14MM |
| 23 | 91415-PA0-004 | Clip - CORD |
| OEM | Part name | Category |
|---|---|---|
| 31101-689-004 | Rotor assy. - ALTERNATOR | Alternator components |
| 31102-PB2-004 | Stator assy. - ALTERNATOR | Alternator components |
| 31108-PB2-004 | Sub rectifier assy. | Alternator components |
| 31109-PB2-004 | Frame assy - DRIVE END | Alternator components |
| 31111-671-004 | Bearing - RR. | Alternator components |
| 31114-671-004 | Bearing - FR. | Alternator components |
| 31115-PB2-004 | Fan - ALTERNATOR | Alternator components |
| 31116-671-004 | Ring - SPACE | Alternator components |
| 31118-PA0-662 | Bush - INSULATION | Alternator components |
| 31119-671-004 | Insulator - TERMINAL | Alternator components |
| 31121-PB2-004 | Frame - RECTIFIER SIDE END | Alternator components |
| 31125-671-004 | Washer - INSULATION | Alternator components |
| 31129-671-004 | Spring - BRUSH | Alternator components |
| 31130-PA0-662 | Condenser | Alternator components |
| 31133-PA0-662 | Collar - SPACE | Alternator components |
| 31134-671-004 | Collar - SPACE | Alternator components |
| 31141-PA6-004 | Pulley - ALTERNATOR | Alternator components |
| 31144-671-004 | Brush | Alternator components |
| 31145-634-671 | Bolt - THROUGH | Alternator components |
| 38755-590-004 | Nut - PULLEY LOCK | Alternator components |
| 90093-PB1-004 | Screw-washer - 5X15 | Alternator components |
| 90094-PB1-004 | Washer - SPRING, 14MM | Alternator components |
| 91415-PA0-004 | Clip - CORD | Alternator components |
