ASU

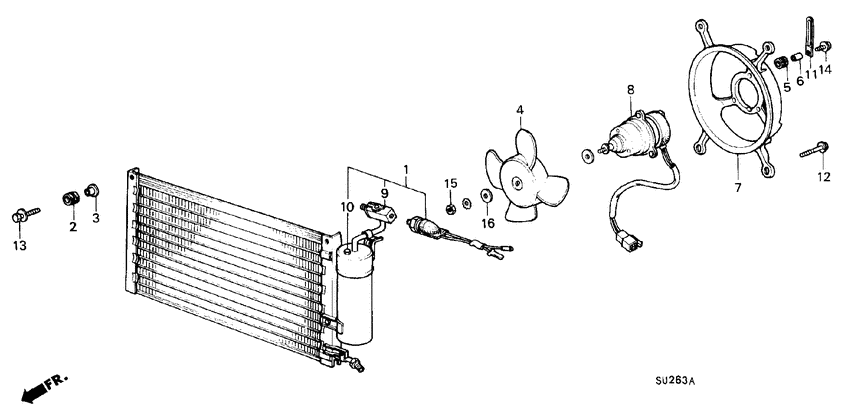

Air conditioner (CONDENSER) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 38600-693-671 | Condenser assy |
| 2 | 38608-692-000 | Rubber - MOUNTING |
| 3 | 38609-692-000 | Collar - DISTANCE |
| 4 | 38611-PC1-951 | Fan comp - COOLING |
| 5 | 38612-692-000 | Rubber - MOTOR MOUNT |
| 6 | 38613-692-000 | Collar - MOTOR MOUNTING |
| 7 | 38615-692-000 | Shroud comp. |
| 8 | 38616-PA6-661 | Motor - COOLING FAN |
| 9 | 38641-692-003 | Switch - PRESSURE (SHOWA) |
| 10 | 38642-692-013 | Plug - FUSIBLE (SAK) |
| 11 | 91403-663-000 | Clamp - HIGH TENSION CORD |
| OEM | Part name | Category |
|---|---|---|
| 38600-693-671 | Condenser assy | Air conditioner (CONDENSER) |
| 38608-692-000 | Rubber - MOUNTING | Air conditioner (CONDENSER) |
| 38609-692-000 | Collar - DISTANCE | Air conditioner (CONDENSER) |
| 38611-PC1-951 | Fan comp - COOLING | Air conditioner (CONDENSER) |
| 38612-692-000 | Rubber - MOTOR MOUNT | Air conditioner (CONDENSER) |
| 38613-692-000 | Collar - MOTOR MOUNTING | Air conditioner (CONDENSER) |
| 38615-692-000 | Shroud comp. | Air conditioner (CONDENSER) |
| 38616-PA6-661 | Motor - COOLING FAN | Air conditioner (CONDENSER) |
| 38641-692-003 | Switch - PRESSURE (SHOWA) | Air conditioner (CONDENSER) |
| 38642-692-013 | Plug - FUSIBLE (SAK) | Air conditioner (CONDENSER) |
| 91403-663-000 | Clamp - HIGH TENSION CORD | Air conditioner (CONDENSER) |
