ASA44

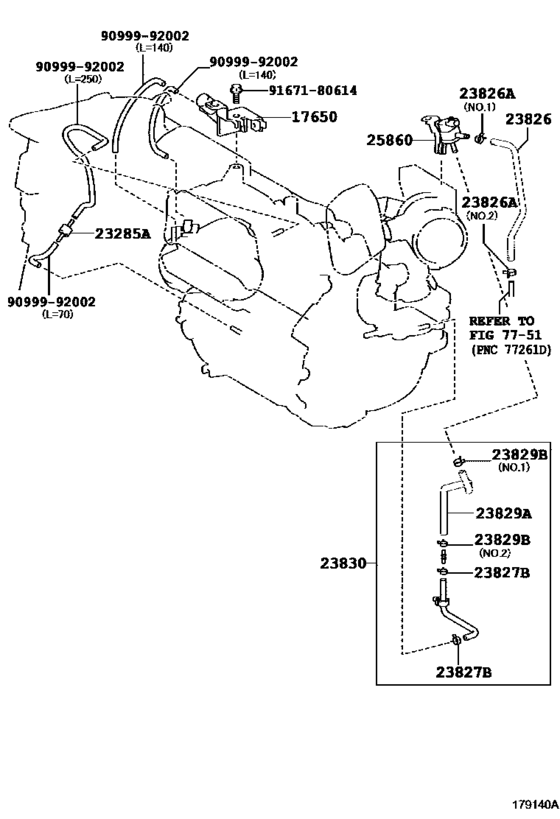

Vacuum Piping ([10.2015 - ] (1510- )2ARFE) 10
| # | OEM | Part name |
|---|---|---|
| 17650 | 25860-36010 | Valve Assy, Vacuum Switching |
| 23285 | 90917-10065 | Valve, Check |
| 23826 | 23826-36091 | Hose, Fuel Vapor Feed, No.1 |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 23829 | 23826-36100 | Hose, Fuel Vapor Feed |
| 23829 | 90466-13004 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23830 | 23830-36110 | Hose Assy, Fuel Vapor Feed, No.2 |
| 25860 | 25860-36090 | Valve Assy, Vacuum Switching, No.1 |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 23826-36091 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 23826-36100 | Hose, Fuel Vapor Feed | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 23830-36110 | Hose Assy, Fuel Vapor Feed, No.2 | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 25860-36010 | Valve Assy, Vacuum Switching | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 25860-36090 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 90466-13004 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 90917-10065 | Valve, Check | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([10.2015 - ] (1510- )2ARFE) |
