ASA44

Toyota RAV4-VANGUARD · 2012 · 3,634 parts · 205 categories

3,634 items

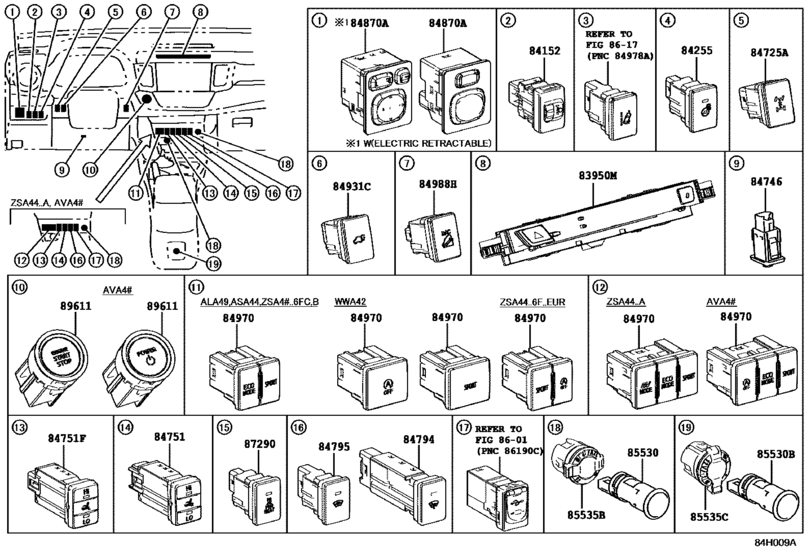

Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD) 20

#	OEM	Part name
83950	83950-42220	Lamp Assy, Telltale
83950	83950-42240	Lamp Assy, Telltale
83950	83950-42230	Lamp Assy, Telltale
84152	84152-42051	Switch, Headlamp Leveling
84255	84255-42010	Switch, Steering Heater
84725	84725-42011	Switch, Differential Lock
84746	84746-50010	Switch, Tire Pressure Warning
84751	84751-42072	Switch, Seat Heater
84751	84751-42082	Switch, Seat Heater
84794	84794-48021	Switch, Fr Wiper Deicer
84795	84795-33011	Switch, Front Window Deicer
84870	84870-74010	Switch Assy, Outer Mirror
84870	84870-52050	Switch Assy, Outer Mirror
84931	84930-42051	Switch, Back Door Control
84970	84970-42010	Switch Assy, Combination
84988	84988-42071	Switch, Downhill Assist Control
85530	85530-42010	Socket Assy, Power Outlet, No.1
85535	85535-42060	Cover, Power Outlet Socket, No.1
85535	85535-42070	Cover, Power Outlet Socket, Rear
89611	89611-42012	Switch, Push Start

OEM	Part name	Category
83950-42220	Lamp Assy, Telltale	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
83950-42230	Lamp Assy, Telltale	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
83950-42240	Lamp Assy, Telltale	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84152-42051	Switch, Headlamp Leveling	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84255-42010	Switch, Steering Heater	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84725-42011	Switch, Differential Lock	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84746-50010	Switch, Tire Pressure Warning	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84751-42072	Switch, Seat Heater	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84751-42082	Switch, Seat Heater	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84794-48021	Switch, Fr Wiper Deicer	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84795-33011	Switch, Front Window Deicer	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84870-52050	Switch Assy, Outer Mirror	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84870-74010	Switch Assy, Outer Mirror	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84930-42051	Switch, Back Door Control	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84970-42010	Switch Assy, Combination	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
84988-42071	Switch, Downhill Assist Control	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
85530-42010	Socket Assy, Power Outlet, No.1	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
85535-42060	Cover, Power Outlet Socket, No.1	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
85535-42070	Cover, Power Outlet Socket, Rear	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
89611-42012	Switch, Push Start	Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL (1510- )LHD)
