Search › Model › ASA44

ASA44

Toyota RAV4-VANGUARD · 2012 · 3,634 parts · 205 categories

3,634 items

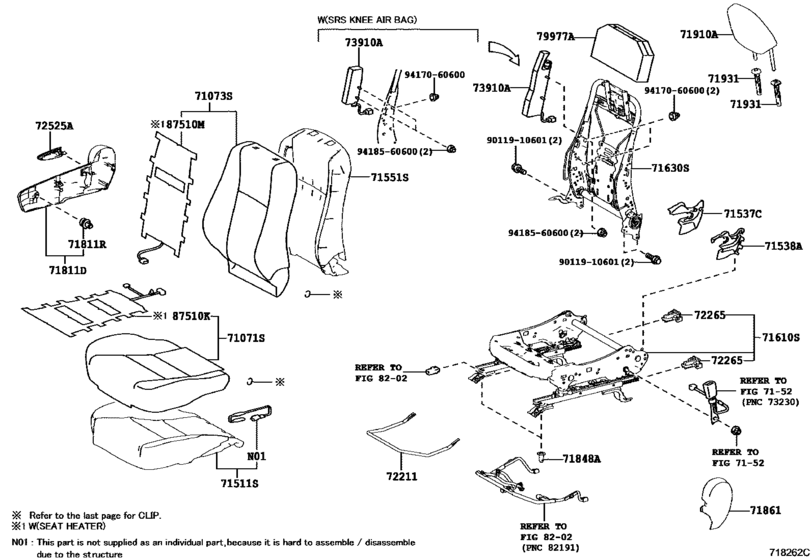

Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD) 40

#	OEM	Part name
71071	71071-0R210-C0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-42B20-C4	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R220-C0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-42B30-C5	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-0R320-C0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-42F71-C4	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R340-C0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-42F91-C5	Cover, Front Seat Back, Rh(For Separate Type)
71511	71501-0R060	Pad, Front Seat Cushion, Rh(For Separate Type)
71511	71501-42020	Pad, Front Seat Cushion, Rh(For Separate Type)
71537	71537-42020-C0	Protector, Front Seat Cushion Edge, Rh(For Lh Seat)
71538	71538-42020-C0	Protector, Front Seat Cushion Edge, Lh(For Lh Seat)
71551	71551-0R130	Pad, Front Seat Back, Rh(For Separate Type)
71551	71551-42300	Pad, Front Seat Back, Rh(For Separate Type)
71610	71610-0R070	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610	71610-42050	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630	71630-0R060	Spring Assy, Front Seat Back, Rh(For Separate Type)
71630	71630-42100	Spring Assy, Front Seat Back, Rh(For Separate Type)
71811	71811-42130-C0	Shield, Front Seat Cushion, Rh
71811	71769-47020	Clip, Rear Seat Back Board
71848	71848-47010	Cap, Seat Adjuster Cover, Rh
71848	71848-48050	Cap, Seat Adjuster Cover, Rh
71861	71861-42090-C0	Shield, Front Seat Cushion, Inner Rh
71910	71910-0R140-C0	Headrest Assy, Front Seat
71910	71910-42330-C5	Headrest Assy, Front Seat
71910	71910-0R130-C1	Headrest Assy, Front Seat
71910	71910-42221-25	Headrest Assy, Front Seat
71931	71932-42020-C0	Support, Front Seat Headrest
71931	71932-42030-C0	Support, Front Seat Headrest
72211	72211-47020	Handle Sub-Assy, Seat Track Rh - SEAT TRACK ADJUSTING
72265	72265-42010	Cover, Seat Track Upper Rail, Rh
72525	72525-52050-C0	Handle, Reclining Adjuster Release, Rh
73910	73910-42060	Air Bag Assy, Front Seat, Rh (Cannot be supplied)
79977	79977-0R020	Felt, Seat Back
79977	79977-52120	Felt, Seat Back
87510	87510-42181	Heater Assy, Front Seat Cushion, Rh
87510	87510-42171	Heater Assy, Front Seat Back, Rh
9011910601	90119-10601	BOLT W-WASHER
9417060600	94170-60600	NUT CAP
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71071-0R210-C0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71071-0R220-C0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71071-42B20-C4	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71071-42B30-C5	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71073-0R320-C0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71073-0R340-C0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71073-42F71-C4	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71073-42F91-C5	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71501-0R060	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71501-42020	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71537-42020-C0	Protector, Front Seat Cushion Edge, Rh(For Lh Seat)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71538-42020-C0	Protector, Front Seat Cushion Edge, Lh(For Lh Seat)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71551-0R130	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71551-42300	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71610-0R070	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71610-42050	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71630-0R060	Spring Assy, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71630-42100	Spring Assy, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71769-47020	Clip, Rear Seat Back Board	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71811-42130-C0	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71848-47010	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71848-48050	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71861-42090-C0	Shield, Front Seat Cushion, Inner Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71910-0R130-C1	Headrest Assy, Front Seat	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71910-0R140-C0	Headrest Assy, Front Seat	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71910-42221-25	Headrest Assy, Front Seat	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71910-42330-C5	Headrest Assy, Front Seat	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71932-42020-C0	Support, Front Seat Headrest	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
71932-42030-C0	Support, Front Seat Headrest	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
72211-47020	Handle Sub-Assy, Seat Track Rh - SEAT TRACK ADJUSTING	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
72265-42010	Cover, Seat Track Upper Rail, Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
72525-52050-C0	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
73910-42060	Air Bag Assy, Front Seat, Rh (Cannot be supplied)	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
79977-0R020	Felt, Seat Back	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
79977-52120	Felt, Seat Back	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
87510-42171	Heater Assy, Front Seat Back, Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
87510-42181	Heater Assy, Front Seat Cushion, Rh	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
90119-10601	BOLT W-WASHER	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
94170-60600	NUT CAP	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
94185-60600	Nut, Wire Adjusting, No.1	Seat & Seat Track ([12.2012 - ] PASSENGER SEAT (1212- )LHD)
