| 16057-0V011 |
Hose Sub-Assy, Radiator |

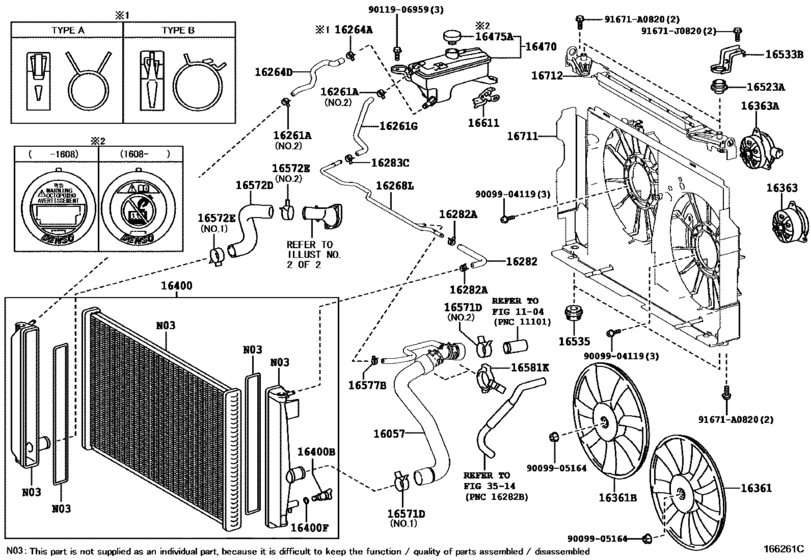

Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16057-36021 |
Hose Sub-Assy, Radiator |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16261-36050 |
Hose, Water By-Pass |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16264-36040 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16268-36070 |
Pipe, Water By-Pass, No.1 |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16282-36030 |
Hose, Water By-Pass, No.5 |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16361-28230 |
Fan, No.2 |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16361-36080 |
Fan |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16363-36100 |
Motor, Cooling Fan |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16363-36160 |
Motor, Cooling Fan, Rh |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16400-28570 |
Radiator Assy |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16417-30170 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16418-15520 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16470-28113 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16475-28140 |
Cap Sub-Assy, Radiator Reserve Tank |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16523-28030 |
Cushion, Radiator Support |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16533-26070 |
Support, Radiator, Upper |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16535-28060 |
Support, Radiator, Lower |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16572-36130 |
Hose, Radiator, No.2 |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16581-36010 |
Clamp, Hose(For Radiator Hose) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16611-28030 |
Bracket, Radiator Reserve Tank |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16611-36010 |
Bracket, Radiator Reserve Tank |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16711-36140 |
Shroud, Fan |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 16712-36030 |
Shroud, Fan, No.2 |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 90099-04119 |
BOLT WASHER HEAD |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 90099-05164 |
Nut |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 90119-06959 |
New Genuine Part |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 90466-C0026 |
Clip(For Water By-Pass Hose No.1) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 90467-13128 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 90467-15022 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 91671-A0820 |
New Genuine Part |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 91671-J0820 |
BOLT FLANGE |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 96136-41901 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 96136-44301 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 96136-44801 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
| 96137-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([10.2015 - ] RADIATOR SIDE (1510- )2ARFE) |
