Search › Model › ASA44

ASA44

Toyota RAV4-VANGUARD · 2012 · 3,634 parts · 205 categories

← Back to categories

3,634 items

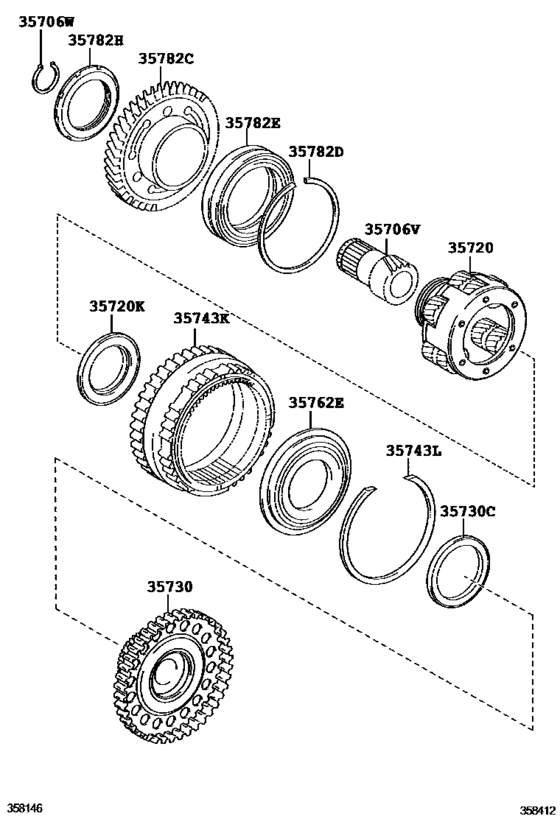

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44) 17

#	OEM	Part name
35706	35706-73010	Gear Sub Assy, Planetary Sun
35706	90520-34032	Ring, Snap (For Planetary Sun Gear)
35720	35720-33070	Gear Assy, Front Planetary
35720	35720-73020	Gear Assy, Front Planetary
35720	90374-62011	Bearing, Thrust Needle Roller(For Planetary Gear Rear)
35730	35730-33030	Gear Assy, Rear Planetary Sun
35730	35730-73010	Gear Assy, Rear Planetary Sun
35730	90374-61001	Bearing, Thrust Needle(For Rear Planetary Sun Gear, No.2)
35743	35743-33040	Gear, Planetary Ring
35743	35743-73010	Gear, Planetary Ring
35743	90520-99108	Ring, Snap (For Planetary Ring Gear)
35762	35762-73010	Flange, Planetary Ring Gear
35782	35782-33040	Gear, Counter Drive
35782	35782-73010	Gear, Counter Drive
35782	90520-99154	Ring, Hole Snap(For Counter Drive Gear)
35782	90369-72002	Bearing(For Counter Drive Gear)
35782	90179-60001	Nut(For Counter Drive Gear)

OEM	Part name	Category
35706-73010	Gear Sub Assy, Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35720-33070	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35720-73020	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35730-33030	Gear Assy, Rear Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35730-73010	Gear Assy, Rear Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35743-33040	Gear, Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35743-73010	Gear, Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35762-73010	Flange, Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35782-33040	Gear, Counter Drive	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
35782-73010	Gear, Counter Drive	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
90179-60001	Nut(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
90369-72002	Bearing(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
90374-61001	Bearing, Thrust Needle(For Rear Planetary Sun Gear, No.2)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
90374-62011	Bearing, Thrust Needle Roller(For Planetary Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
90520-34032	Ring, Snap (For Planetary Sun Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
90520-99108	Ring, Snap (For Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)
90520-99154	Ring, Hole Snap(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([10.2015 - ] U760F (1510- )ASA44)

Source: Public OEM parts-catalog data
Variants: 2 / 44
Category: 205
Collected: 2026-08-02
