Search › Model › ASA44
ASA44

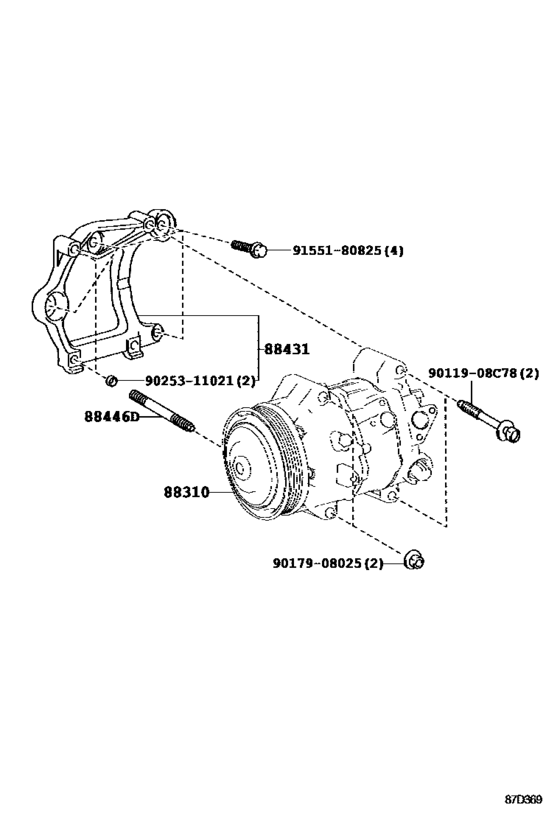

Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) 7
| # | OEM | Part name |
|---|---|---|
| 88310 | 88310-42531 | Compressor Assy, W/pulley |
| 88431 | 12502-36010 | Bracket, Compressor Mounting, No.1 |
| 88446 | 88446-42030 | Bolt, Cooler |
| 9011908 | 90119-08C78 | Bolt, No.2(For Alternator) |
| 9017908025 | 90179-08025 | Nut, Cap(For Cylinder Head Cover) |
| 9025311021 | 90253-11021 | Pin, Ring |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| OEM | Part name | Category |
|---|---|---|
| 12502-36010 | Bracket, Compressor Mounting, No.1 | Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) |
| 88310-42531 | Compressor Assy, W/pulley | Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) |
| 88446-42030 | Bolt, Cooler | Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) |
| 90119-08C78 | Bolt, No.2(For Alternator) | Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) |
| 90179-08025 | Nut, Cap(For Cylinder Head Cover) | Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) |
| 90253-11021 | Pin, Ring | Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Heating & Air Conditioning - Compressor ([10.2015 - ] (1510- )ASA44) |
