ASA44

Toyota RAV4-VANGUARD · 2012 · 3,634 parts · 205 categories

← Back to categories

3,634 items

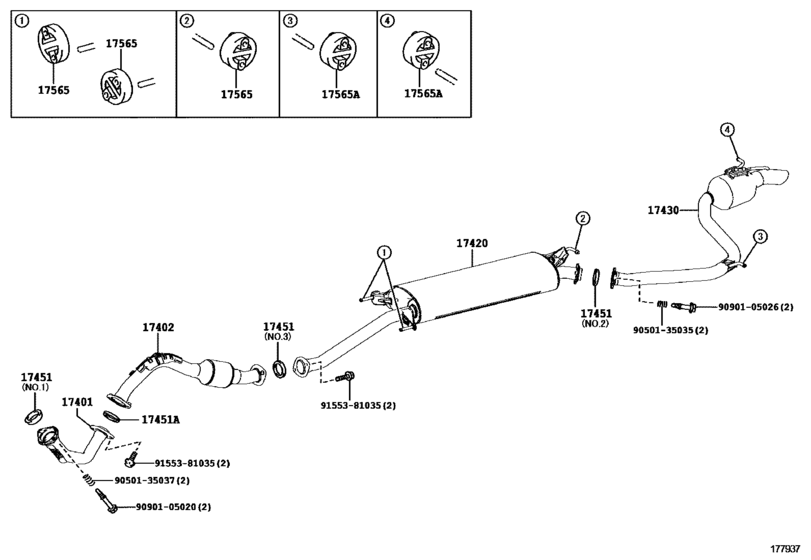

Exhaust Pipe ([10.2015 - ] (1510- )2ARFE) 18

#	OEM	Part name
17401	17401-36010	Pipe Sub-Assy, Exhaust, Front
17402	17402-36010	Pipe Sub-Assy, Exhaust, Front No.2
17420	17420-36170	Pipe Assy, Exhaust, Center
17420	17420-36181	Pipe Assy, Exhaust, Center
17430	17430-36480	Pipe Assy, Exhaust, Tail
17430	17430-36490	Pipe Assy, Exhaust, Tail
17451	17451-28022	Gasket, Exhaust Pipe
17451	17451-28070	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	90917-06078	Gasket, Exhaust Pipe
17451	90917-A6003	Gasket, Exhaust Pipe
17565	17565-22040	Support, Exhaust Pipe, No.1
17565	17565-22030	Support, Exhaust Pipe, No.1
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9155381035	91553-81035	BOLT, FLANGE

OEM	Part name	Category
17401-36010	Pipe Sub-Assy, Exhaust, Front	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17402-36010	Pipe Sub-Assy, Exhaust, Front No.2	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17420-36170	Pipe Assy, Exhaust, Center	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17420-36181	Pipe Assy, Exhaust, Center	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17430-36480	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17430-36490	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17451-28022	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17451-28070	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)
91553-81035	BOLT, FLANGE	Exhaust Pipe ([10.2015 - ] (1510- )2ARFE)

Source: Public OEM parts-catalog data
Variants: 2 / 44
Category: 205
Collected: 2026-08-02
