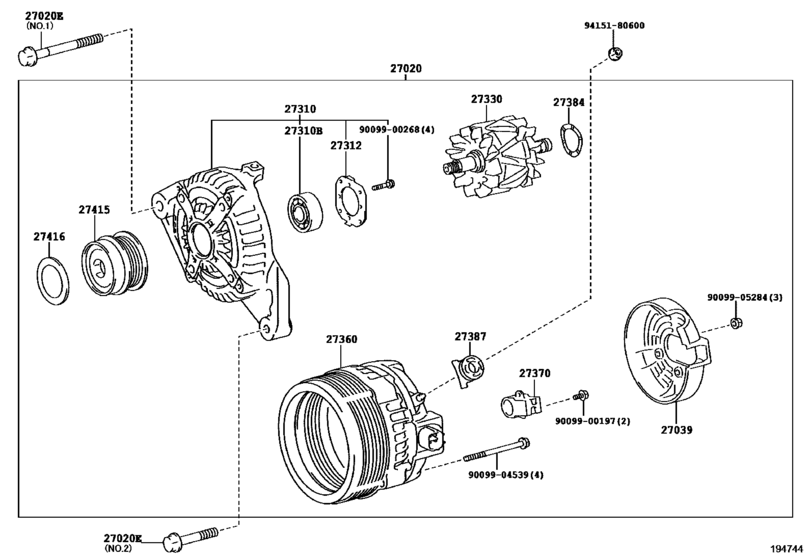

| 27039-31390 |
Cover, Alternator Rear End |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27060-36061 |
Alternator Assy |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27310-36090 |
Frame Assy, Drive End, Alternator |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27330-58460 |
Rotor Assy, Alternator |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27360-36111 |
Coil Assy, Alternator |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27370-31220 |
Holder Assy, Alternator Brush |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27384-50030 |
Holder, Alternator Brush, A |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27387-20130 |
Insulator, Terminal |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27415-0W021 |
Pulley, Alternator W/clutch |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 27416-0W050 |
Cap, Alternator Pulley |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 90099-00197 |
Screw |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 90099-04539 |
BOLT |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 90099-05284 |
NUT |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 90099-10223 |
Bearing(For Alternator Drive End Frame) |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 90105-10562 |
Bolt, No.2(For Alternator) |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 91552-81045 |
Bolt, No.1(For Alternator) |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Alternator ([10.2015 - ] 12V 150A (1510- )2ARFE..G,M) |
