ASA42

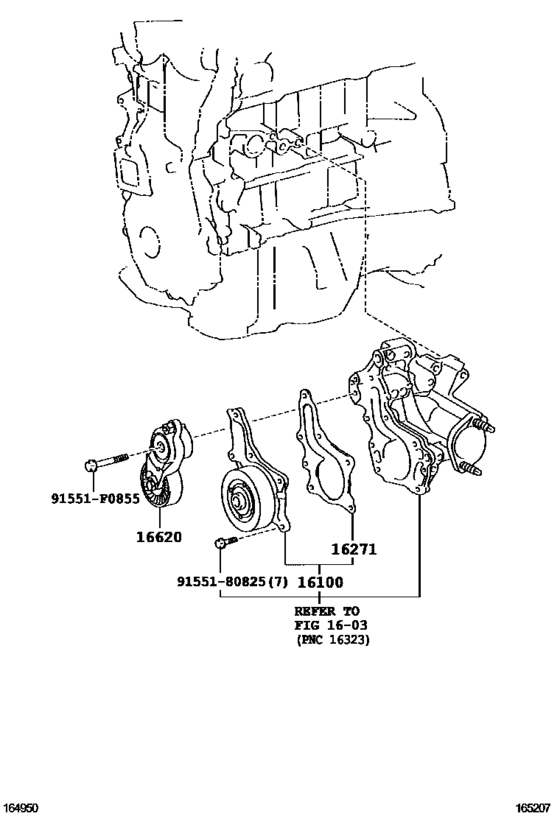

Water Pump ([12.2012 - ] (1212- )2ARFE) 7
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-39515 | Pump Assy, Engine Water |
| 16100 | 16100-39516 | PUMP ASSY WATER |
| 16271 | 16271-36010 | Gasket, Water Pump |
| 16620 | 16620-36012 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-36013 | Tensioner Assy, V-Ribbed Belt |
| 91551 | 91551-F0855 | Bolt(For Cylinder Head Set Sub) |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| OEM | Part name | Category |
|---|---|---|
| 16100-39515 | Pump Assy, Engine Water | Water Pump ([12.2012 - ] (1212- )2ARFE) |
| 16100-39516 | PUMP ASSY WATER | Water Pump ([12.2012 - ] (1212- )2ARFE) |
| 16271-36010 | Gasket, Water Pump | Water Pump ([12.2012 - ] (1212- )2ARFE) |
| 16620-36012 | Tensioner Assy, V-Ribbed Belt | Water Pump ([12.2012 - ] (1212- )2ARFE) |
| 16620-36013 | Tensioner Assy, V-Ribbed Belt | Water Pump ([12.2012 - ] (1212- )2ARFE) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Water Pump ([12.2012 - ] (1212- )2ARFE) |
| 91551-F0855 | Bolt(For Cylinder Head Set Sub) | Water Pump ([12.2012 - ] (1212- )2ARFE) |
