Search › Model › ASA42

ASA42

Toyota RAV4-VANGUARD · 2012 · 3,291 parts · 203 categories

← Back to categories

3,291 items

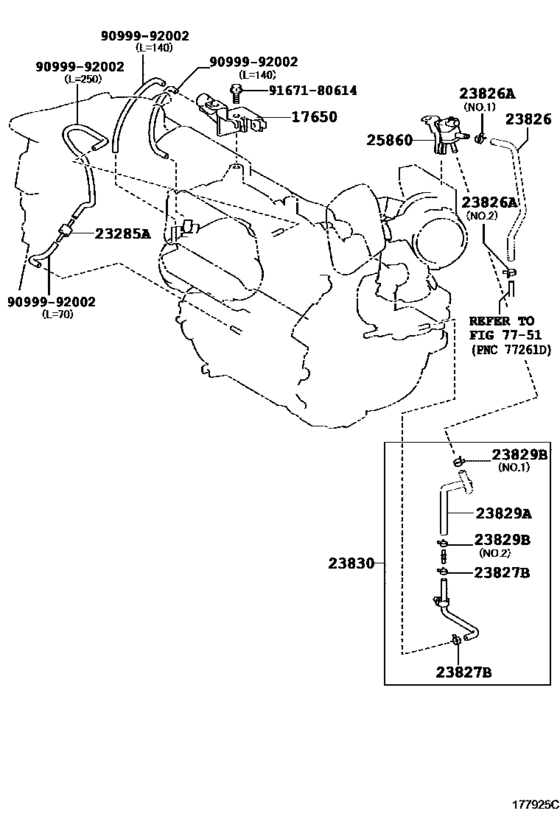

Vacuum Piping ([12.2012 - ] (1212- )2ARFE) 12

#	OEM	Part name
17650	25860-36010	Valve Assy, Vacuum Switching
23285	90917-10065	Valve, Check
23826	23826-36091	Hose, Fuel Vapor Feed, No.1
23826	90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)
23826	90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)
23827	96132-51300	Clip(For Ventilation Hose No.2)
23829	23826-36100	Hose, Fuel Vapor Feed
23829	90466-13004	Clip(For Fuel Vapor Feed Hose, No.1)
23830	23830-36110	Hose Assy, Fuel Vapor Feed, No.2
25860	25860-36090	Valve Assy, Vacuum Switching, No.1
9099992002	90999-92002	Air Hose (300 mm)
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
23826-36091	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
23826-36100	Hose, Fuel Vapor Feed	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
23830-36110	Hose Assy, Fuel Vapor Feed, No.2	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
25860-36010	Valve Assy, Vacuum Switching	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
25860-36090	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
90466-13004	Clip(For Fuel Vapor Feed Hose, No.1)	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
90917-10065	Valve, Check	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)
96132-51300	Clip(For Ventilation Hose No.2)	Vacuum Piping ([12.2012 - ] (1212- )2ARFE)

Source: Public OEM parts-catalog data
Variants: 2 / 22
Category: 203
Collected: 2026-08-02
