Search › Model › ASA42

ASA42

Toyota RAV4-VANGUARD · 2012 · 3,291 parts · 203 categories

3,291 items

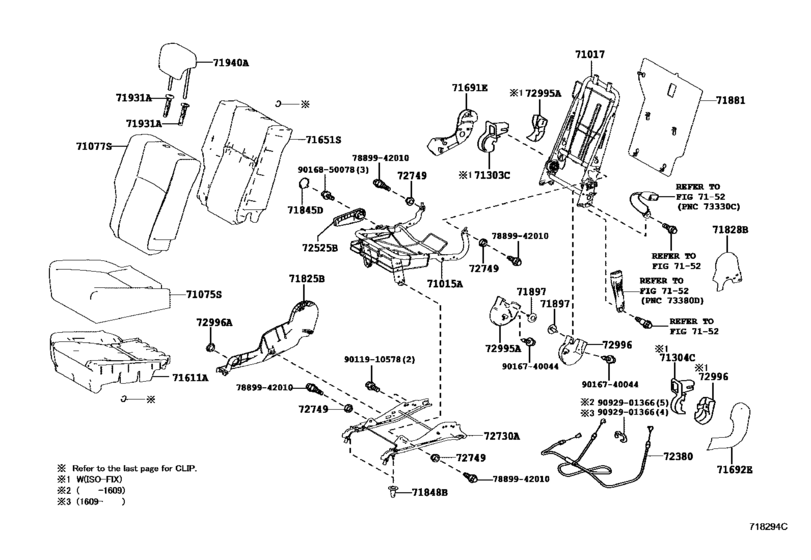

Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#) 36

#	OEM	Part name
71015	71650-42030	Frame Sub-Assy, Rear Seat Cushion, Rh
71017	71017-42150	Frame Sub-Assy, Rear Seat Back, Rh
71075	71075-42730-A2	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-42730-B1	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-42730-C5	Cover, Rear Seat Cushion, Rh (For Separate Type)
71077	71077-42710-A0	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-42710-B0	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-42710-C8	Cover, Rear Seat Back, Rh (For Separate Type)
71611	71611-42100	Pad, Rear Seat Cushion, Rh
71651	71651-42120	Pad, Rear Seat Back, Rh(For Separate Type)
71691	71691-42020-C0	Cover, Rear Seat Cushion Hinge, No.1
71692	71692-42030-C0	Cover, Rear Seat Cushion Hinge, No.2
71825	71825-42020-C0	Moulding, Rear Seat Cushion, Rh
71828	71828-42040-C0	Moulding, Rear Seat Cushion, Rear Rh
71845	71845-48010-C0	Cover, Rear Seat Reclining, Upper Rh
71848	71848-42010	Cap, Seat Adjuster Cover, Rh
71881	71881-42010	Board, Rear Seat Back, Rh
71897	71897-42010-C0	Hook, Seat Cover Side
71931	71930-47020-C0	Support, Front Seat Headrest
71931	71931-47020-C0	Support, Front Seat Headrest
71940	71940-42180-A1	Headrest Assy, Rear Seat
71940	71940-42180-B1	Headrest Assy, Rear Seat
71940	71940-42180-C7	Headrest Assy, Rear Seat
72380	72380-42070	Cable Assy, Seat Adjuster Control, No.2
72525	72525-48030-C0	Handle, Reclining Adjuster Release, Rh
72730	71308-42010	Adjuster Assy, Rear Seat Reclining, Rh
72749	72749-42010	Spacer, Rear Seat Reclining, No.1
72995	72995-42100-C0	Cover, Rear Seat
72996	72996-42020-C0	Cover, Rear Seat Back, Rh
72996	72996-50100-C0	Cover, Rear Seat Back, Rh
72996	72996-50100-C1	Cover, Rear Seat Back, Rh
7889942010	78899-42010	Bolt, Front Seat
9011910578	90119-10578	Bolt, Hexagon(For Rear Caliper)
9016740044	90167-40044	BOLT
9016850078	90168-50078	SCREW TAPPING
9092901366	90929-01366	New Genuine Part

OEM	Part name	Category
71017-42150	Frame Sub-Assy, Rear Seat Back, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71075-42730-A2	Cover, Rear Seat Cushion, Rh (For Separate Type)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71075-42730-B1	Cover, Rear Seat Cushion, Rh (For Separate Type)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71075-42730-C5	Cover, Rear Seat Cushion, Rh (For Separate Type)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71077-42710-A0	Cover, Rear Seat Back, Rh (For Separate Type)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71077-42710-B0	Cover, Rear Seat Back, Rh (For Separate Type)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71077-42710-C8	Cover, Rear Seat Back, Rh (For Separate Type)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71308-42010	Adjuster Assy, Rear Seat Reclining, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71611-42100	Pad, Rear Seat Cushion, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71650-42030	Frame Sub-Assy, Rear Seat Cushion, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71651-42120	Pad, Rear Seat Back, Rh(For Separate Type)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71691-42020-C0	Cover, Rear Seat Cushion Hinge, No.1	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71692-42030-C0	Cover, Rear Seat Cushion Hinge, No.2	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71825-42020-C0	Moulding, Rear Seat Cushion, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71828-42040-C0	Moulding, Rear Seat Cushion, Rear Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71845-48010-C0	Cover, Rear Seat Reclining, Upper Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71848-42010	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71881-42010	Board, Rear Seat Back, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71897-42010-C0	Hook, Seat Cover Side	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71930-47020-C0	Support, Front Seat Headrest	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71931-47020-C0	Support, Front Seat Headrest	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71940-42180-A1	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71940-42180-B1	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
71940-42180-C7	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
72380-42070	Cable Assy, Seat Adjuster Control, No.2	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
72525-48030-C0	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
72749-42010	Spacer, Rear Seat Reclining, No.1	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
72995-42100-C0	Cover, Rear Seat	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
72996-42020-C0	Cover, Rear Seat Back, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
72996-50100-C0	Cover, Rear Seat Back, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
72996-50100-C1	Cover, Rear Seat Back, Rh	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
78899-42010	Bolt, Front Seat	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
90119-10578	Bolt, Hexagon(For Rear Caliper)	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
90167-40044	BOLT	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
90168-50078	SCREW TAPPING	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)
90929-01366	New Genuine Part	Seat & Seat Track ([12.2012 - ] REAR SEAT(RH) (1212- )ALA49,ASA4#,ZSA4#)

Source: Public OEM parts-catalog data
Variants: 2 / 22
Category: 203
Collected: 2026-08-02
