Search › Model › ASA42

ASA42

Toyota RAV4-VANGUARD · 2012 · 3,291 parts · 203 categories

3,291 items

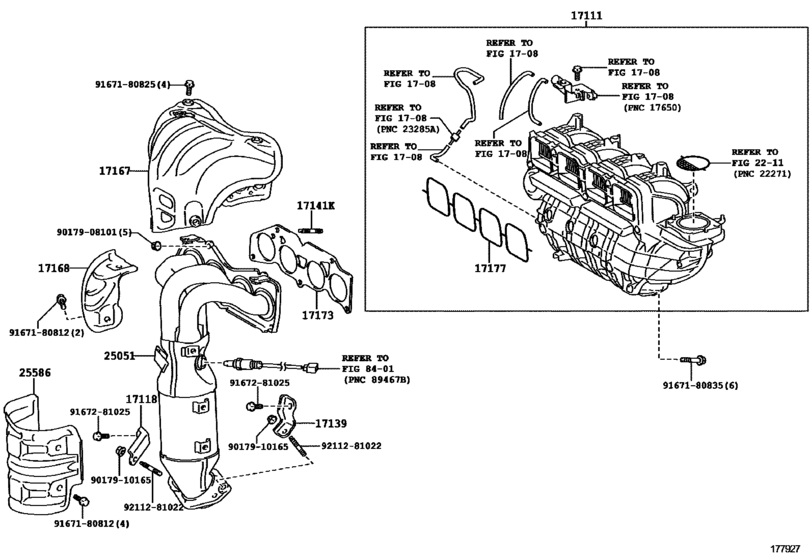

Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE) 22

#	OEM	Part name
17111	17120-36070	Manifold, Intake
17111	17120-36010	Manifold, Intake
17111	17120-36011	Manifold, Intake
17118	17118-36010	Stay, Manifold
17139	17139-36010	Stay, Manifold, No.2
17141	90126-08037	Bolt, Stud(For Oil Strainer)
17167	17167-36011	Insulator, Exhaust Manifold Heat, No.1
17168	17168-36010	Insulator, Exhaust Manifold Heat, No.2
17173	17173-36020	Gasket, Exhaust Manifold To Head
17177	17171-36020	Gasket, Intake Manifold To Head, No.1
17177	17171-36010	Gasket, Intake Manifold To Head, No.1
17177	17171-36011	Gasket, Intake Manifold To Head, No.1
25051	25051-36160	Converter Sub-Assy, Exhaust Manifold
25051	25051-36150	Converter Sub-Assy, Exhaust Manifold
25586	25586-36010	Insulator, Manifold Converter, No.1
9017908101	90179-08101	NUT
9017910165	90179-10165	NUT
9167180812	91671-80812	BOLT FLANGE
9167180825	91671-80825	Bolt, Compressor, No.1
9167180835	91671-80835	Bolt, Compressor, No.1
9167281025	91672-81025	Bolt, Center Support Bearing Bracket
9211281022	92112-81022	BOLT STUD

OEM	Part name	Category
17118-36010	Stay, Manifold	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17120-36010	Manifold, Intake	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17120-36011	Manifold, Intake	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17120-36070	Manifold, Intake	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17139-36010	Stay, Manifold, No.2	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17167-36011	Insulator, Exhaust Manifold Heat, No.1	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17168-36010	Insulator, Exhaust Manifold Heat, No.2	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17171-36010	Gasket, Intake Manifold To Head, No.1	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17171-36011	Gasket, Intake Manifold To Head, No.1	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17171-36020	Gasket, Intake Manifold To Head, No.1	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
17173-36020	Gasket, Exhaust Manifold To Head	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
25051-36150	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
25051-36160	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
25586-36010	Insulator, Manifold Converter, No.1	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
90126-08037	Bolt, Stud(For Oil Strainer)	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
90179-08101	NUT	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
90179-10165	NUT	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
91671-80812	BOLT FLANGE	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
91671-80825	Bolt, Compressor, No.1	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
91671-80835	Bolt, Compressor, No.1	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
91672-81025	Bolt, Center Support Bearing Bracket	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
92112-81022	BOLT STUD	Manifold ([12.2012 - ] W/O(TCV) (1212- )2ARFE)
