| 16716-28010 |
Cushion, Fan Shroud |

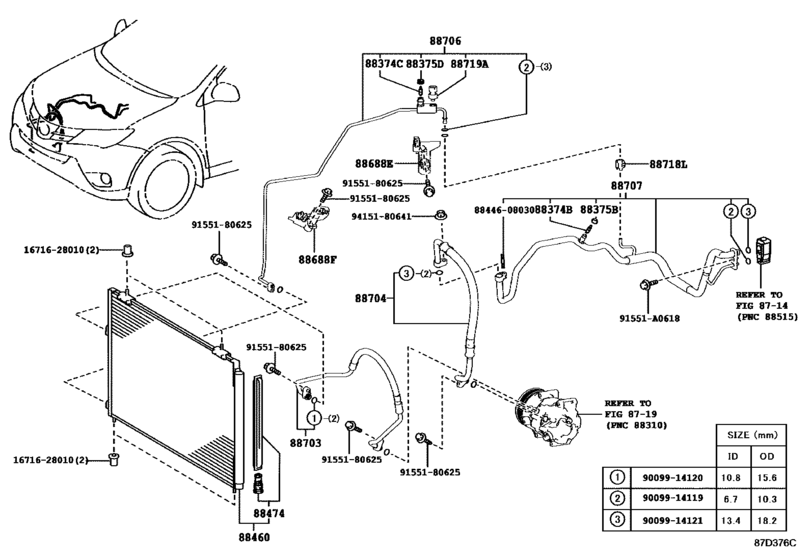

Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88374-30010 |
Valve, Service, No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88446-08030 |
Bolt, Idle Pulley |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88460-42110 |
Condenser Assy, Cooler |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88474-12030 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88688-42510 |
Bracket, Cooler Refrigerant Hose, No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88688-42520 |
Bracket, Cooler Refrigerant Hose, No.2 |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88703-42210 |
Hose Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88704-42280 |
Hose Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88706-42480 |
Pipe Sub-Assy, Liquid |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88710-42080 |
Pipe Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88718-2D150 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 88719-33020 |
Sensor, Airconditioner Pressure |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 91551-80625 |
Bolt(For Camshaft Housing Set) |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 91551-A0618 |
BOLT FLANGE |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
| 94151-80641 |
NUT FLANGE |
Heating & Air Conditioning - Cooler Piping ([12.2012 - ] (1212- )GCC) |
