ASA38

Toyota RAV4-VANGUARD · 2008 · 4,057 parts · 189 categories

← Back to categories

4,057 items

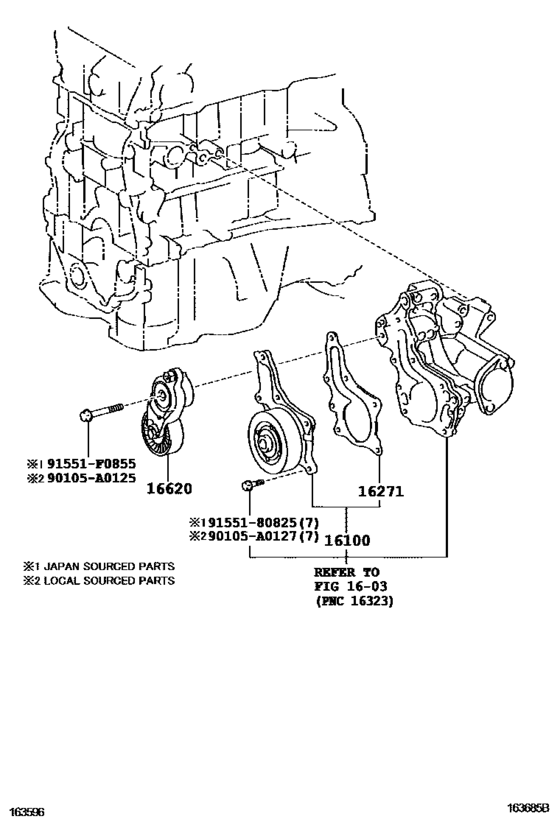

Water Pump ([11.2008 - ] (0811- )2ARFE..NAP) 13

#	OEM	Part name
16100	16100-09515	Pump Assy, Engine Water
16100	16100-39515	Pump Assy, Engine Water
16100	16100-39516	PUMP ASSY WATER
16271	16271-36010	Gasket, Water Pump
16620	16620-0V020	Tensioner Assy, V-Ribbed Belt
16620	16620-0V022	Tensioner Assy, V-Ribbed Belt
16620	16620-36010	Tensioner Assy, V-Ribbed Belt
16620	16620-36012	Tensioner Assy, V-Ribbed Belt
16620	16620-36013	Tensioner Assy, V-Ribbed Belt
90105	90105-A0125	Bolt(For Cylinder Head Set Sub)
90105	90105-A0127	Bolt(For Cylinder Head Set Sub)
91551	91551-F0855	Bolt(For Cylinder Head Set Sub)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)

OEM	Part name	Category
16100-09515	Pump Assy, Engine Water	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16100-39515	Pump Assy, Engine Water	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16100-39516	PUMP ASSY WATER	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16271-36010	Gasket, Water Pump	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16620-0V020	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16620-0V022	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16620-36010	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16620-36012	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
16620-36013	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
90105-A0125	Bolt(For Cylinder Head Set Sub)	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
90105-A0127	Bolt(For Cylinder Head Set Sub)	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
91551-80825	Bolt(For Cylinder Head Set Sub)	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
91551-F0855	Bolt(For Cylinder Head Set Sub)	Water Pump ([11.2008 - ] (0811- )2ARFE..NAP)
