Search › Model › ASA38

ASA38

Toyota RAV4-VANGUARD · 2008 · 4,057 parts · 189 categories

4,057 items

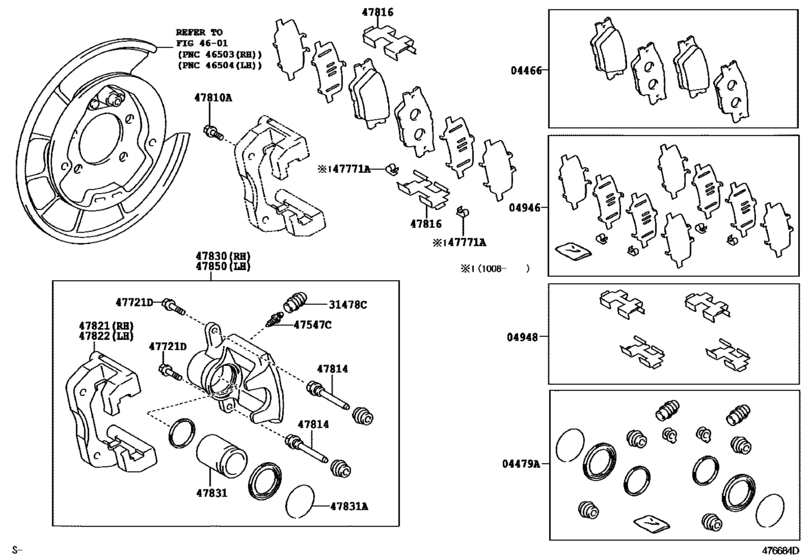

Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP) 25

#	OEM	Part name
4466	04466-42060	Pad Kit, Disc Brake, Rear
4479	04479-0R010	Cylinder Kit, Disc Brake, Rear
4946	04946-0R010	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-0R010	Fitting Kit, Disc Brake, Rear
31478	31478-0R010	Cap, Bleeder Plug(For Rear Disc Brake)
31478	31478-50020	Cap, Bleeder Plug(For Front Disc Brake)
47547	47547-12130	Plug, Bleeder(For Front Disc Brake)
47721	90016-AA604	Bolt(For Front Disc Brake Cylinder Slide)
47771	47871-06050	Plate, Pad Wear Indicator(For Rear Disc Brake)
47810	90105-A0248	Bolt, Hexagon(For Rear Caliper)
47814	47814-06050	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47814	47814-06120	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47816	47816-0R010	Plate, Pad Support, No.1(For Rear Disc Brake)
47821	47821-0R010	Mounting, Rear Disc Brake Cylinder, Rh
47821	47821-0R030	Mounting, Rear Disc Brake Cylinder, Rh
47822	47822-0R010	Mounting, Rear Disc Brake Cylinder, Lh
47822	47822-0R030	Mounting, Rear Disc Brake Cylinder, Lh
47830	47830-0R010	Cylinder Assy, Disc Brake, Rear Rh
47830	47830-0R011	Cylinder Assy, Disc Brake, Rear Rh
47830	47830-0R030	Cylinder Assy, Disc Brake, Rear Rh
47831	47831-06050	Piston, Rear Disc Brake
47831	90016-AU502	Ring, Set(For Rear Disc Brake Piston)
47850	47850-0R010	Cylinder Assy, Disc Brake, Rear Lh
47850	47850-0R011	Cylinder Assy, Disc Brake, Rear Lh
47850	47850-0R030	Cylinder Assy, Disc Brake, Rear Lh

OEM	Part name	Category
04466-42060	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
04479-0R010	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
04946-0R010	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
04948-0R010	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
31478-0R010	Cap, Bleeder Plug(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
31478-50020	Cap, Bleeder Plug(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47547-12130	Plug, Bleeder(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47814-06050	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47814-06120	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47816-0R010	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47821-0R010	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47821-0R030	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47822-0R010	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47822-0R030	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47830-0R010	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47830-0R011	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47830-0R030	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47831-06050	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47850-0R010	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47850-0R011	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47850-0R030	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
47871-06050	Plate, Pad Wear Indicator(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
90016-AA604	Bolt(For Front Disc Brake Cylinder Slide)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
90016-AU502	Ring, Set(For Rear Disc Brake Piston)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)
90105-A0248	Bolt, Hexagon(For Rear Caliper)	Rear Disc Brake Caliper & Dust Cover ([11.2008 - 09.2011] (0811-1109)NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 189
Collected: 2026-08-02
