Search › Model › ASA38

ASA38

Toyota RAV4-VANGUARD · 2008 · 4,057 parts · 189 categories

← Back to categories

4,057 items

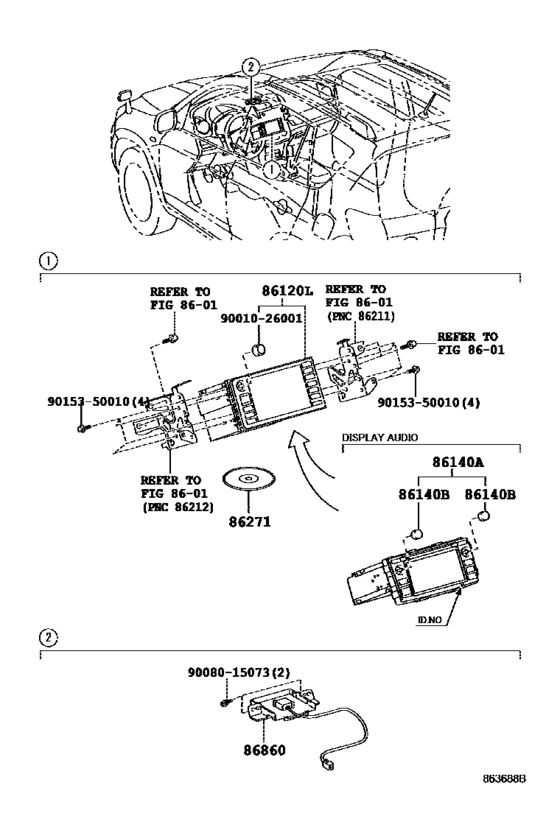

Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO) 11

#	OEM	Part name
86120	86120-02E40	Receiver Assy, Navigation
86120	86120-12C00	Receiver Assy, Navigation
86271	86271-12081	Disc, Disc Player
86271	86271-12089	Disc, Disc Player
86271	86271-12082	Disc, Disc Player
86271	86271-12083	Disc, Disc Player
86271	86271-12084	Disc, Disc Player
86860	86860-42030	Antenna Assy, Navigation
9001026001	90010-26001	Knob, Navigation Receiver Switch
9008015073	90080-15073	SCREW WWASHER TAPP
9015350010	90153-50010	BOLT

OEM	Part name	Category
86120-02E40	Receiver Assy, Navigation	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
86120-12C00	Receiver Assy, Navigation	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
86271-12081	Disc, Disc Player	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
86271-12082	Disc, Disc Player	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
86271-12083	Disc, Disc Player	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
86271-12084	Disc, Disc Player	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
86271-12089	Disc, Disc Player	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
86860-42030	Antenna Assy, Navigation	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
90010-26001	Knob, Navigation Receiver Switch	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
90080-15073	SCREW WWASHER TAPP	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)
90153-50010	BOLT	Navigation & Front Monitor Display ([11.2008 - ] (0811- )NAP..LIMD,SPO)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 189
Collected: 2026-08-02
