Search › Model › ASA38

ASA38

Toyota RAV4-VANGUARD · 2008 · 4,057 parts · 189 categories

4,057 items

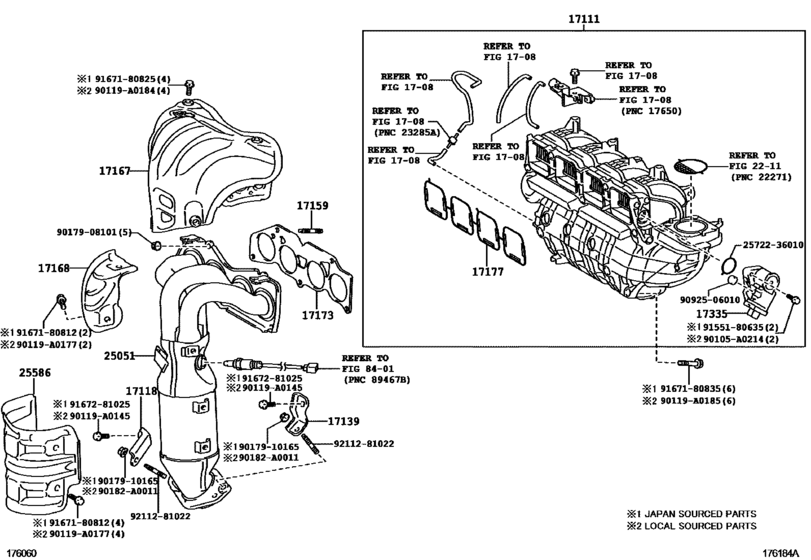

Manifold ([11.2008 - ] (0811- )2ARFE..NAP) 41

#	OEM	Part name
17111	17120-0V010	Manifold, Intake
17111	17120-36010	Manifold, Intake
17111	17120-36011	Manifold, Intake
17118	17118-0V010	Stay, Manifold
17118	17118-36010	Stay, Manifold
17139	17139-0V040	Stay, Manifold, No.2
17139	17139-36010	Stay, Manifold, No.2
17159	90126-08037	Bolt, Stud(For Oil Strainer)
17159	90126-A0007	Bolt, Stud(For Exhaust Manifold, Rh)
17167	17167-0V030	Insulator, Exhaust Manifold Heat, No.1
17167	17167-36010	Insulator, Exhaust Manifold Heat, No.1
17167	17167-36011	Insulator, Exhaust Manifold Heat, No.1
17168	17168-0V010	Insulator, Exhaust Manifold Heat, No.2
17168	17168-36010	Insulator, Exhaust Manifold Heat, No.2
17173	17173-0V010	Gasket, Exhaust Manifold To Head
17173	17173-36020	Gasket, Exhaust Manifold To Head
17177	17171-0V010	Gasket, Intake To Exhaust Manifold
17177	17171-36010	Gasket, Intake Manifold To Head, No.1
17177	17171-36011	Gasket, Intake Manifold To Head, No.1
17335	17335-0V010	Actuator, Intake Air Control Valve
17335	17335-36010	Actuator, Intake Air Control Valve
25051	25051-0V070	Converter Sub-Assy, Exhaust Manifold
25051	25051-36010	Converter Sub-Assy, Exhaust Manifold
25586	25586-0V010	Insulator, Manifold Converter, No.1
25586	25586-36010	Insulator, Manifold Converter, No.1
90105	90105-A0214	Bolt(For Cylinder Head Cover)
90119	90119-A0145	New Genuine Part
90119	90119-A0177	New Genuine Part
90119	90119-A0184	New Genuine Part
90119	90119-A0185	New Genuine Part
90182	90182-A0011	New Genuine Part
2572236010	25722-36010	Gasket, Electric Air Control Valve
9017908101	90179-08101	NUT
9017910165	90179-10165	NUT
9092506010	90925-06010	New Genuine Part
9155180635	91551-80635	Bolt(For Head To Camshaft Bearing Cap)
9167180812	91671-80812	BOLT FLANGE
9167180825	91671-80825	Bolt, Compressor, No.1
9167180835	91671-80835	Bolt, Compressor, No.1
9167281025	91672-81025	Bolt, Center Support Bearing Bracket
9211281022	92112-81022	BOLT STUD

OEM	Part name	Category
17118-0V010	Stay, Manifold	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17118-36010	Stay, Manifold	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17120-0V010	Manifold, Intake	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17120-36010	Manifold, Intake	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17120-36011	Manifold, Intake	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17139-0V040	Stay, Manifold, No.2	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17139-36010	Stay, Manifold, No.2	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17167-0V030	Insulator, Exhaust Manifold Heat, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17167-36010	Insulator, Exhaust Manifold Heat, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17167-36011	Insulator, Exhaust Manifold Heat, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17168-0V010	Insulator, Exhaust Manifold Heat, No.2	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17168-36010	Insulator, Exhaust Manifold Heat, No.2	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17171-0V010	Gasket, Intake To Exhaust Manifold	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17171-36010	Gasket, Intake Manifold To Head, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17171-36011	Gasket, Intake Manifold To Head, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17173-0V010	Gasket, Exhaust Manifold To Head	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17173-36020	Gasket, Exhaust Manifold To Head	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17335-0V010	Actuator, Intake Air Control Valve	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
17335-36010	Actuator, Intake Air Control Valve	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
25051-0V070	Converter Sub-Assy, Exhaust Manifold	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
25051-36010	Converter Sub-Assy, Exhaust Manifold	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
25586-0V010	Insulator, Manifold Converter, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
25586-36010	Insulator, Manifold Converter, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
25722-36010	Gasket, Electric Air Control Valve	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90105-A0214	Bolt(For Cylinder Head Cover)	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90119-A0145	New Genuine Part	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90119-A0177	New Genuine Part	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90119-A0184	New Genuine Part	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90119-A0185	New Genuine Part	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90126-08037	Bolt, Stud(For Oil Strainer)	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90126-A0007	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90179-08101	NUT	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90179-10165	NUT	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90182-A0011	New Genuine Part	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
90925-06010	New Genuine Part	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
91551-80635	Bolt(For Head To Camshaft Bearing Cap)	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
91671-80812	BOLT FLANGE	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
91671-80825	Bolt, Compressor, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
91671-80835	Bolt, Compressor, No.1	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
91672-81025	Bolt, Center Support Bearing Bracket	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
92112-81022	BOLT STUD	Manifold ([11.2008 - ] (0811- )2ARFE..NAP)
