ASA33

Toyota RAV4-VANGUARD · 2008 · 4,196 parts · 189 categories

4,196 items

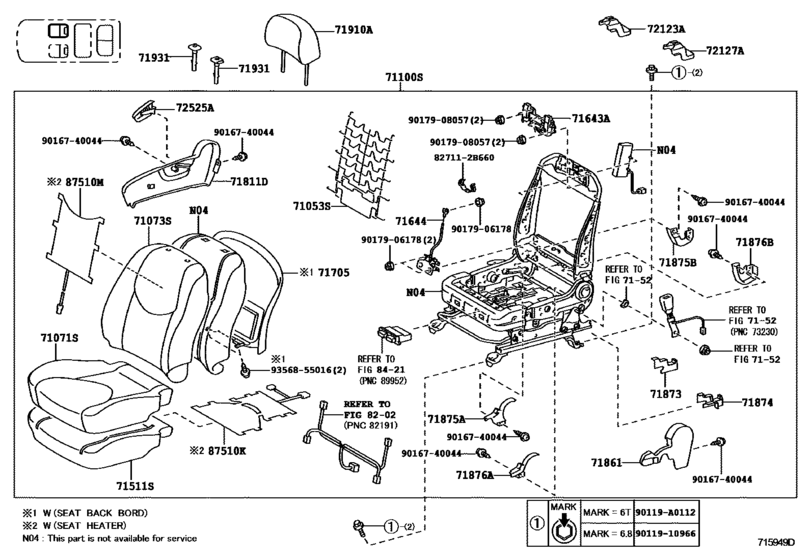

Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP) 76

#	OEM	Part name
71053	71053-02160	Spring Sub-Assy, Front Seat Back, Rh
71071	71071-0R010-B0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R013-B0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R010-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R013-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R030	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R032	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R033-B5	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R033-E2	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-0R010-B0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R013-B0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R010-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R020-B0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R023-B0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R020-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R023-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R060	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R062	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R063-B5	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R066-B5	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R066-E2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R013-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R033-B5	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R033-E2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R063-E2	Cover, Front Seat Back, Rh(For Separate Type)
71100	71100-0R020-B0	Seat Assy, Front Rh
71100	71100-0R024-B0	Seat Assy, Front Rh
71100	71100-0R020-E0	Seat Assy, Front Rh
71100	71100-0R024-E0	Seat Assy, Front Rh
71100	71100-0R062	Seat Assy, Front Rh
71100	71100-0R063-B0	Seat Assy, Front Rh
71100	71100-0R067-B0	Seat Assy, Front Rh
71100	71100-0R067-E0	Seat Assy, Front Rh
71100	71100-0R063-E0	Seat Assy, Front Rh
71511	71511-0R010	Pad, Front Seat Cushion, Rh(For Separate Type)
71511	71511-0R020	Pad, Front Seat Cushion, Rh(For Separate Type)
71643	71643-04010	Unit, Active Headrest, Upr
71644	71644-04010	Unit, Active Headrest, Lwr
71705	71771-0R010-B1	Board Sub-Assy, Front Seat Back, Rh
71705	71771-0R010-E0	Board Sub-Assy, Front Seat Back, Rh
71811	71811-0R010-B1	Shield, Front Seat Cushion, Rh
71811	71811-0R010-E0	Shield, Front Seat Cushion, Rh
71861	71861-0R010-B1	Shield, Front Seat Cushion, Inner Rh
71861	71861-0R010-E0	Shield, Front Seat Cushion, Inner Rh
71873	71873-0R010	Shield, Front Seat Cushion, Lower Rh
71874	71874-0R010	Shield, Front Seat Cushion, Lower Lh
71875	71875-06350-B1	Cover, Reclining Adjuster Inside, Rh
71875	71875-06350-E1	Cover, Reclining Adjuster Inside, Rh
71875	71875-AA060	Shield, Front Seat Back, Rh
71876	71876-06380-B1	Cover, Reclining Adjuster Inside, Lh
71876	71876-06380-E1	Cover, Reclining Adjuster Inside, Lh
71876	71876-AA060	Shield, Front Seat Back, Lh
71910	71910-0R010-B0	Headrest Assy, Front Seat
71910	71910-0R010-E0	Headrest Assy, Front Seat
71910	71910-0R011-B0	Headrest Assy, Front Seat
71910	71910-0R011-E0	Headrest Assy, Front Seat
71910	71910-0R020	Headrest Assy, Front Seat
71910	71910-0R022-B4	Headrest Assy, Front Seat
71910	71910-0R022-E2	Headrest Assy, Front Seat
71931	71930-44020-B2	Support, Front Seat Headrest
71931	71930-44020-E2	Support, Front Seat Headrest
71931	71931-47010-E8	Support, Front Seat Headrest
71931	71931-47010-P4	Support, Front Seat Headrest
72123	72123-0R010-B1	Cover, Seat Track Bracket, Outer Front Rh
72123	72123-0R010-E0	Cover, Seat Track Bracket, Outer Front Rh
72127	72127-0R010-B1	Cover, Seat Track Bracket, Inner Front Rh
72127	72127-0R010-E0	Cover, Seat Track Bracket, Inner Front Rh
72525	72525-06020-B1	Handle, Reclining Adjuster Release, Rh
72525	72525-06020-E1	Handle, Reclining Adjuster Release, Rh
90119	90119-A0112	New Genuine Part
827112	82711-2B660	Clamp, Wiring Harness
9011910966	90119-10966	BOLT WWASHER
9016740044	90167-40044	BOLT
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9017908057	90179-08057	NUT
9356855016	93568-55016	Screw

OEM	Part name	Category
71053-02160	Spring Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R010-B0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R010-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R013-B0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R013-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R030	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R032	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R033-B5	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71071-0R033-E2	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R010-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R010-E0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R013-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R013-E0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R020-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R020-E0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R023-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R023-E0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R033-B5	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R033-E2	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R060	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R062	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R063-B5	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R063-E2	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R066-B5	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71073-0R066-E2	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R020-B0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R020-E0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R024-B0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R024-E0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R062	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R063-B0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R063-E0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R067-B0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71100-0R067-E0	Seat Assy, Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71511-0R010	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71511-0R020	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71643-04010	Unit, Active Headrest, Upr	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71644-04010	Unit, Active Headrest, Lwr	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71771-0R010-B1	Board Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71771-0R010-E0	Board Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71811-0R010-B1	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71811-0R010-E0	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71861-0R010-B1	Shield, Front Seat Cushion, Inner Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71861-0R010-E0	Shield, Front Seat Cushion, Inner Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71873-0R010	Shield, Front Seat Cushion, Lower Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71874-0R010	Shield, Front Seat Cushion, Lower Lh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71875-06350-B1	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71875-06350-E1	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71875-AA060	Shield, Front Seat Back, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71876-06380-B1	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71876-06380-E1	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71876-AA060	Shield, Front Seat Back, Lh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71910-0R010-B0	Headrest Assy, Front Seat	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71910-0R010-E0	Headrest Assy, Front Seat	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71910-0R011-B0	Headrest Assy, Front Seat	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71910-0R011-E0	Headrest Assy, Front Seat	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71910-0R020	Headrest Assy, Front Seat	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71910-0R022-B4	Headrest Assy, Front Seat	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71910-0R022-E2	Headrest Assy, Front Seat	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71930-44020-B2	Support, Front Seat Headrest	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71930-44020-E2	Support, Front Seat Headrest	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71931-47010-E8	Support, Front Seat Headrest	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
71931-47010-P4	Support, Front Seat Headrest	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
72123-0R010-B1	Cover, Seat Track Bracket, Outer Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
72123-0R010-E0	Cover, Seat Track Bracket, Outer Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
72127-0R010-B1	Cover, Seat Track Bracket, Inner Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
72127-0R010-E0	Cover, Seat Track Bracket, Inner Front Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
72525-06020-B1	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
72525-06020-E1	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
82711-2B660	Clamp, Wiring Harness	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
90119-10966	BOLT WWASHER	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
90119-A0112	New Genuine Part	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
90167-40044	BOLT	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
90179-06178	Nut (For Rear Wiper Arm Setting)	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
90179-08057	NUT	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)
93568-55016	Screw	Seat & Seat Track ([11.2008 - ] PASSENGER SIDE W(SRS SIDE AIR BAG) (0811- )NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 189
Collected: 2026-08-02
