Search › Model › ASA33

ASA33

Toyota RAV4-VANGUARD · 2008 · 4,196 parts · 189 categories

← Back to categories

4,196 items

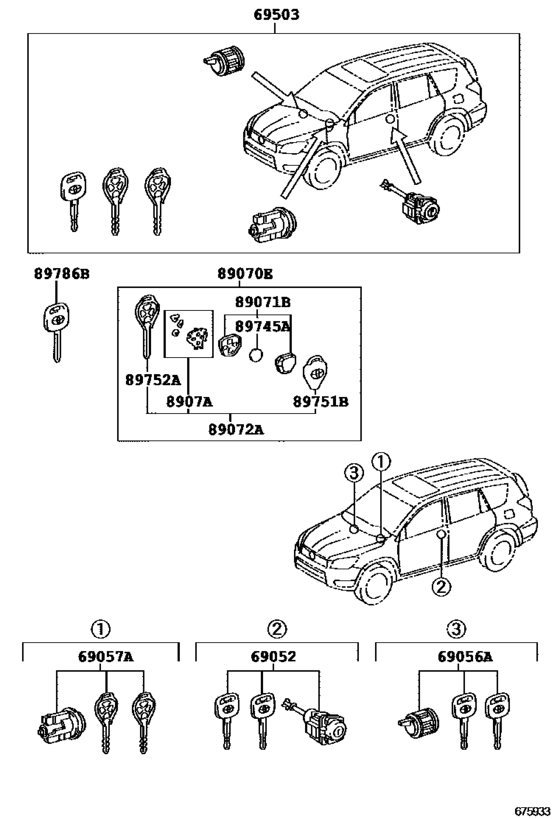

Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD) 18

#	OEM	Part name
69052	69052-02160	Cylinder & Key Set, Door Lock, Lh
69056	69056-06040	Cylinder & Key Set, Glove Compartment Lock
69057	69057-02150	Cylinder & Key Set, Ignition Switch Lock
69057	69057-02291	Cylinder & Key Set, Ignition Switch Lock
69503	69005-0R020	Cylinder Set, Lock
69503	69005-0R021	Cylinder Set, Lock
89070	89070-0R030	Transmitter Assy, Door Control
89070	89070-0R050	Transmitter Assy, Door Control
89071	89071-0R010	Module Set, Transmitter Sub-Assy, Door Control
89072	89072-0R030	Housing Set, Door Control Transmitter
89072	89072-0R050	Housing Set, Door Control Transmitter
89745	89745-48030	Battery, Transmitter
89751	89751-0R020	Cover, Transmitter Housing
89751	89751-0R030	Cover, Transmitter Housing
89752	89752-02210	Case, Transmitter Housing
89752	89752-0K080	Case, Transmitter Housing
89786	89786-08020	Transmitter, Transponder Key Sub
89786	89786-08040	Transmitter, Transponder Key Sub

OEM	Part name	Category
69005-0R020	Cylinder Set, Lock	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
69005-0R021	Cylinder Set, Lock	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
69052-02160	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
69056-06040	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
69057-02150	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
69057-02291	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89070-0R030	Transmitter Assy, Door Control	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89070-0R050	Transmitter Assy, Door Control	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89071-0R010	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89072-0R030	Housing Set, Door Control Transmitter	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89072-0R050	Housing Set, Door Control Transmitter	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89745-48030	Battery, Transmitter	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89751-0R020	Cover, Transmitter Housing	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89751-0R030	Cover, Transmitter Housing	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89752-02210	Case, Transmitter Housing	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89752-0K080	Case, Transmitter Housing	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89786-08020	Transmitter, Transponder Key Sub	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)
89786-08040	Transmitter, Transponder Key Sub	Lock Cylinder Set ([11.2008 - ] (0811- )NAP..SPO,STD)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 189
Collected: 2026-08-02
