Toyota RAV4-VANGUARD · 2008 · 4,196 parts · 189 categories
ASA33 ×

← Back to categories

4,196 items

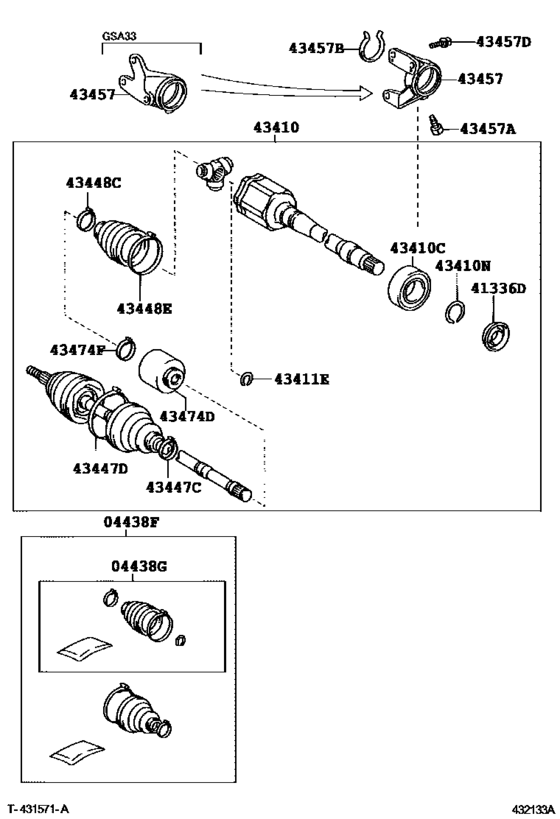

Front Drive Shaft ([11.2008 - ] RH (0811- )ASA33,GSA33..NAP) 18
#OEMPart name
4438 04427-0R010 Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438 04437-0R070 Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336 41336-0R010 Cover, Front Drive Shaft Dust, Rh
43410 43410-0R030 Shaft Assy, Front Drive, Rh
43410 90363-36006 Bearing (For Front Drive Shaft)
43410 90363-A0010 Bearing (For Front Drive Shaft)
43410 43425-0R050 Ring, Hole Snap (For Front Drive Shaft Rh)
43411 43425-0R030 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447 42345-0R080 Clamp (For Front Axle Outboard Joint Boot Rh)
43447 42345-0R070 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448 42345-0R060 Clamp (For Front Axle Inboard Joint Boot Rh)
43448 42345-0R050 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
43457 43457-42060 Bracket, Drive Shaft Bearing
43457 90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457 90521-75002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)
43457 90080-10087 Bolt(For Drive Shaft Bearring Bracket Setting No.2)
43474 43474-0R030 Damper, Front Drive Shaft, Rh
43474 42345-07090 Clamp (For Drive Shaft Damper Setting)
