Search › Model › ASA33

ASA33

Toyota RAV4-VANGUARD · 2008 · 4,196 parts · 189 categories

4,196 items

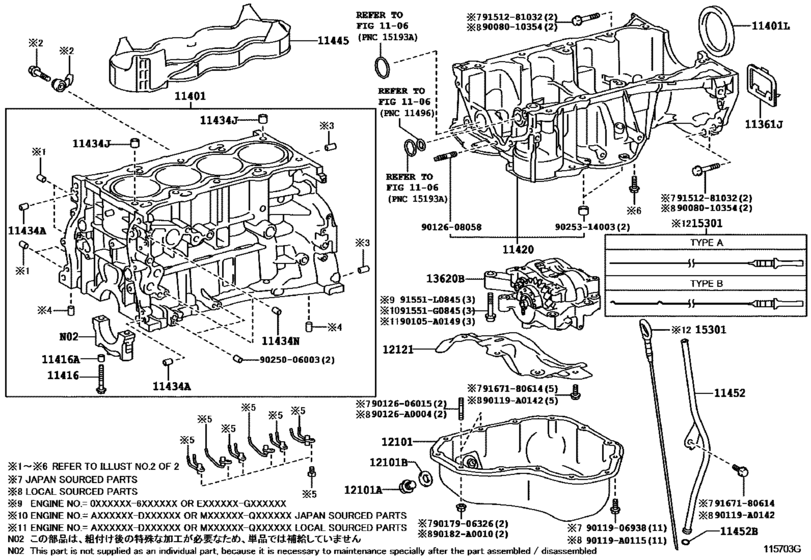

Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP) 63

#	OEM	Part name
11361	11361-0H020	Cover, Flywheel Housing Under
11361	11361-28010	Cover, Flywheel Housing Under
11401	11410-09395	Block Sub-Assy, Cylinder
11401	11410-09396	Block Sub-Assy, Cylinder
11401	90250-06003	Pin, Straight
11401	11410-39075	Block Sub-Assy, Cylinder
11401	11410-39126	Block Sub-Assy, Cylinder
11401	11410-39125	Block Sub-Assy, Cylinder
11401	90311-89005	Seal, Engine Rear Oil
11401	90311-89015	Seal, Engine Rear Oil
11401	90311-89006	Seal, Engine Rear Oil
11401	90311-A0016	Seal, Engine Rear Oil
11401	90311-A0020	Seal, Engine Rear Oil
11416	90910-02173	Bolt(For Crankshaft Bearing Cap Set)
11416	90910-A2008	Bolt(For Crankshaft Bearing Cap Set)
11416	90253-13017	Pin, Ring W/head
11420	11420-36010	Crankcase Assy, Stiffening
11434	90253-15001	Pin, Straight(For Clutch Housing Set)
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11445	11445-0V010	Spacer, Cylinder Block Water Jacket
11445	11445-36010	Spacer, Cylinder Block Water Jacket
11452	11452-0V010	Guide, Oil Level Gage
11452	11452-36020	Guide, Oil Level Gage
11452	11452-36021	Guide, Oil Level Gage
11452	96741-19010	Ring, O(For Oil Level Gage Guide)
12101	12101-0V030	Pan Sub-Assy, Oil
12101	12101-36050	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12121	12121-0V010	Plate, Oil Pan Baffle, No.1
12121	12121-36030	Plate, Oil Pan Baffle, No.1
13620	13620-0V021	Balancer Assy, Engine
13620	13620-36010	Balancer Assy, Engine
13620	13620-36020	Balancer Assy, Engine
13620	13620-36011	Balancer Assy, Engine
15301	15301-0V020	Gage Sub-Assy, Oil Level
15301	15301-36030	Gage Sub-Assy, Oil Level
15301	15301-36031	Gage Sub-Assy, Oil Level
15708	15708-36010	Nozzle Sub-Assy, Oil, No.1
15709	15709-36010	Nozzle Sub-Assy, Oil, No.2
15709	15709-36020	Nozzle Sub-Assy, Oil, No.2
90105	90105-A0149	Bolt(For Camshaft Housing Set)
90105	90105-A0205	New Genuine Part
90119	90119-A0115	New Genuine Part
90119	90119-A0142	New Genuine Part
90126	90126-A0004	New Genuine Part
90182	90182-A0010	New Genuine Part
91551	91551-G0845	Bolt(For Camshaft Housing Set)
91551	91551-L0845	BOLT FLANGE
91551	91551-G0865	Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)
91552	91552-F1035	BOLT FLANGE
9008010354	90080-10354	New Genuine Part
9010510533	90105-10533	New Genuine Part
9010510566	90105-10566	New Genuine Part
9011006040	90110-06040	BOLT HEXAGON SOCKET
9011906938	90119-06938	BOLT WWASHER
9012606015	90126-06015	Bolt, Stud(For Oil Pan)
9012608058	90126-08058	New Genuine Part
9017906326	90179-06326	NUT W-WASHER
9025314003	90253-14003	Pin, Ring(For Crankshaft Bearing Cap Set)
9151281032	91512-81032	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
11361-0H020	Cover, Flywheel Housing Under	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11361-28010	Cover, Flywheel Housing Under	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11410-09395	Block Sub-Assy, Cylinder	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11410-09396	Block Sub-Assy, Cylinder	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11410-39075	Block Sub-Assy, Cylinder	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11410-39125	Block Sub-Assy, Cylinder	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11410-39126	Block Sub-Assy, Cylinder	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11420-36010	Crankcase Assy, Stiffening	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11445-0V010	Spacer, Cylinder Block Water Jacket	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11445-36010	Spacer, Cylinder Block Water Jacket	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11452-0V010	Guide, Oil Level Gage	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11452-36020	Guide, Oil Level Gage	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
11452-36021	Guide, Oil Level Gage	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
12101-0V030	Pan Sub-Assy, Oil	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
12101-36050	Pan Sub-Assy, Oil	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
12121-0V010	Plate, Oil Pan Baffle, No.1	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
12121-36030	Plate, Oil Pan Baffle, No.1	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
13620-0V021	Balancer Assy, Engine	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
13620-36010	Balancer Assy, Engine	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
13620-36011	Balancer Assy, Engine	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
13620-36020	Balancer Assy, Engine	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
15301-0V020	Gage Sub-Assy, Oil Level	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
15301-36030	Gage Sub-Assy, Oil Level	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
15301-36031	Gage Sub-Assy, Oil Level	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
15708-36010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
15709-36010	Nozzle Sub-Assy, Oil, No.2	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
15709-36020	Nozzle Sub-Assy, Oil, No.2	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90080-10354	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90105-10533	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90105-10566	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90105-A0149	Bolt(For Camshaft Housing Set)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90105-A0205	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90110-06040	BOLT HEXAGON SOCKET	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90119-06938	BOLT WWASHER	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90119-A0115	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90119-A0142	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90126-06015	Bolt, Stud(For Oil Pan)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90126-08058	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90126-A0004	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90179-06326	NUT W-WASHER	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90182-A0010	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90250-06003	Pin, Straight	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90253-13017	Pin, Ring W/head	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90253-14003	Pin, Ring(For Crankshaft Bearing Cap Set)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90253-15001	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90311-89005	Seal, Engine Rear Oil	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90311-89006	Seal, Engine Rear Oil	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90311-89015	Seal, Engine Rear Oil	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90311-A0016	Seal, Engine Rear Oil	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90311-A0020	Seal, Engine Rear Oil	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90910-02173	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
90910-A2008	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
91512-81032	New Genuine Part	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
91551-G0845	Bolt(For Camshaft Housing Set)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
91551-G0865	Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
91551-L0845	BOLT FLANGE	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
91552-F1035	BOLT FLANGE	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)
96741-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([11.2008 - ] (0811- )2ARFE..NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 189
Collected: 2026-08-02
