ASA33

Toyota RAV4-VANGUARD · 2008 · 4,196 parts · 189 categories
ASA33 ×

← Back to categories

4,196 items

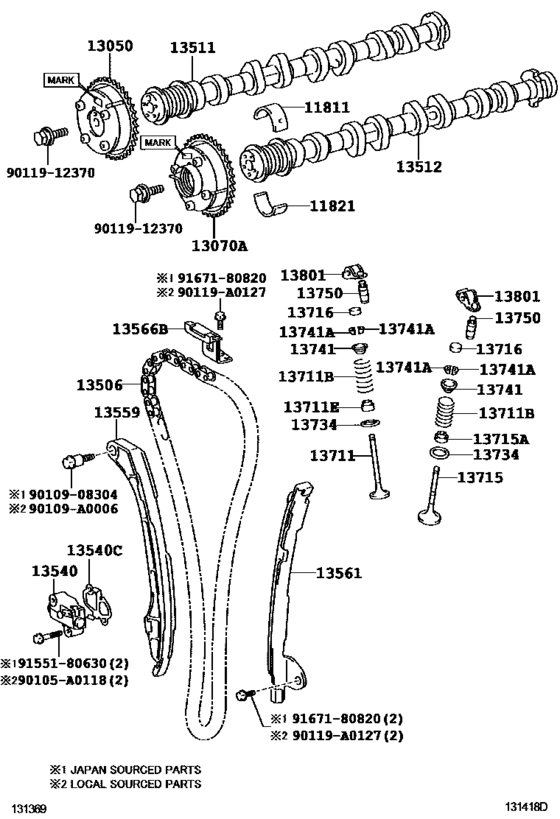

Camshaft & Valve ([11.2008 - ] (0811- )2ARFE..NAP) 68
#OEMPart name
11811 11811-0V020 Bearing, Camshaft, No.1
11811 11811-36010 Bearing, Camshaft, No.1
11821 11821-0V020 Bearing, Camshaft, No.2
11821 11821-36010 Bearing, Camshaft, No.2
13050 13050-0V011 Gear Assy, Camshaft Timing
13050 13050-0V030 Gear Assy, Camshaft Timing
13050 13050-0V040 Gear Assy, Camshaft Timing
13050 13050-36010 Gear Assy, Camshaft Timing
13050 13050-36011 Gear Assy, Camshaft Timing
13050 13050-36030 Gear Assy, Camshaft Timing
13070 13070-0V013 Gear Assy, Camshaft Timing Exhaust
13070 13070-0V040 Gear Assy, Camshaft Timing Exhaust
13070 13070-36010 Gear Assy, Camshaft Timing Exhaust
13070 13070-36011 Gear Assy, Camshaft Timing Exhaust
13070 13070-36030 Gear Assy, Camshaft Timing Exhaust
13506 13506-0V010 Chain Sub-Assy
13506 13506-36010 Chain Sub-Assy
13511 13501-0V010 Camshaft
13511 13501-36020 Camshaft
13511 13501-36050 Camshaft
13512 13502-0V010 Camshaft, No.2
13512 13502-36010 Camshaft, No.2
13512 13502-36030 Camshaft, No.2
13540 13540-0V010 Tensioner Assy, Chain, No.1
13540 13540-0V030 Tensioner Assy, Chain, No.1
13540 13540-36010 Tensioner Assy, Chain, No.1
13540 13540-36040 Tensioner Assy, Chain, No.1
13540 13540-36041 Tensioner Assy
13540 13552-0V010 Gasket(For Chain Tensioner)
13540 13552-36010 Gasket(For Chain Tensioner)
13559 13559-0V010 Slipper, Chain Tensioner
13559 13559-36010 Slipper, Chain Tensioner
13561 13561-0V010 Damper, Chain Vibration, No.1
13561 13561-36010 Damper, Chain Vibration, No.1
13566 13566-0V010 Guide, Timing Chain
13566 13566-0V011 Guide, Timing Chain
13566 13566-36010 Guide, Timing Chain
13566 13566-36011 Guide, Timing Chain
13711 13711-0V010 Valve, Intake
13711 13711-36060 Valve, Intake
13711 90501-33023 Spring, Compression(For Inner)
13711 90501-34016 Spring, Compression(For Inner)
13711 90501-34017 Spring, Compression(For Inner)
13711 90501-A0090 Spring, Compression(For Inner)
13711 90080-31043 Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02101 Seal Or Ring, O(For Valve Stem Oil) - Intake side
13715 13715-0V010 Valve, Exhaust
13715 13715-36020 Valve, Exhaust
13715 90080-31101 Seal Or Ring, O(For Valve Stem Oil)
13715 90913-02112 Seal Or Ring, O(For Valve Stem Oil)
13716 13716-75020 Cap, Valve Stem
13734 13734-0P010 Seat, Valve Spring
13734 13734-62020 Washer, Plate(For Valve Spring Seat)
13741 13741-0V010 Retainer, Valve Spring
13741 13741-20021 Retainer, Valve Spring
13741 90913-03028 Lock, Valve Spring Retainer
13741 90913-A3001 Lock, Valve Spring Retainer
13750 13750-0P020 Adjuster Assy, Valve Lash
13750 13750-31030 Adjuster Assy, Valve Lash
13801 13801-0P010 Arm Sub-Assy, Valve Rocker, No.1
13801 13801-23011 Arm Sub-Assy, Valve Rocker, No.1
90105 90105-A0118 New Genuine Part
90109 90109-A0006 New Genuine Part
90119 90119-A0127 New Genuine Part
9010908304 90109-08304 BOLT
9011912370 90119-12370 Bolt(For Camshaft Timing Gear)
9155180630 91551-80630 Bolt(For Cylinder Head Cover)
9167180820 91671-80820 Bolt (For Transmission Control Cable Bracket)
