ARS212

Toyota CROWN-MAJESTA · 2015 · 3,618 parts · 199 categories

3,618 items

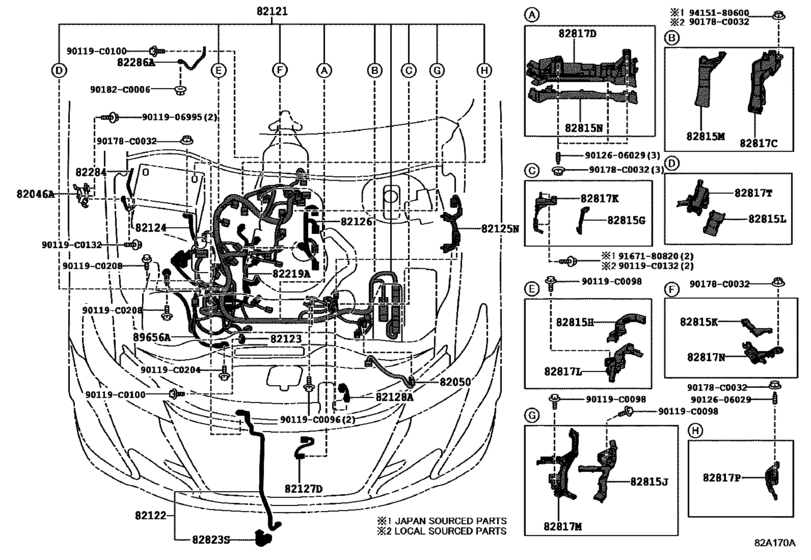

Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212) 42

#	OEM	Part name
82046	82046-0N010	Wire Sub-Assy, Body Ground, No.1
82121	82121-0N070	Wire, Engine
82122	82122-0N030	Wire, Engine, No.2
82123	82123-0N030	Wire, Engine, No.3
82124	82124-0N020	Wire, Engine, No.4
82125	82125-30591	Wire, Engine, No.5
82126	82126-78010	Wire, Engine
82127	82127-30060	Wire, Engine, No.7
82128	82128-30010	Wire, Engine, No.8
82219	82219-30040	Wire, Sensor
82284	82284-0N030	Wire, Earth
82286	82286-0N030	Wire, Earth, No.2
82815	82815-0N060	Cover, Wiring Harness Protector No.5
82815	82815-0N070	Cover, Wiring Harness Protector No.6
82815	82815-0N080	Cover, Wiring Harness Protector, No.7
82815	82815-0N090	Cover, Wiring Harness Protector, No.8
82815	82815-0N100	Cover, Wiring Harness Protector, No.9
82815	82815-0N040	Cover, Wiring Harness Protector
82815	82815-0N050	Cover, Wiring Harness Protector
82817	82817-0N080	Protector, Wiring Harness, No.8
82817	82817-0N090	Protector, Wiring Harness, No.9
82817	82817-0N100	Protector, Wiring Harness, No.10
82817	82817-0N110	Protector, Wiring Harness, No.11
82817	82817-0N120	Protector, Wiring Harness, No.12
82817	82817-0N130	Protector, Wiring Harness, No.13
82817	82817-0N140	Protector, Wiring Harness, No.6
82817	82817-0N220	Protector, Wiring Harness, No.14
82823	82823-30090	Cap, Terminal, No.3
89656	89656-30030	Wire, Power Steering Earth
90119	90119-C0096	New Genuine Part
90119	90119-C0098	New Genuine Part
90119	90119-C0100	New Genuine Part
90119	90119-C0132	New Genuine Part
90119	90119-C0204	New Genuine Part
90119	90119-C0208	New Genuine Part
90178	90178-C0032	Nut, Wire Adjusting, No.1
90182	90182-C0006	Nut (For Rear Wiper Arm Setting)
9011906995	90119-06995	BOLT WWASHER
9012606029	90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)
9012606029	90126-A0014	Bolt, Stud(For Oil Strainer)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82046-0N010	Wire Sub-Assy, Body Ground, No.1	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82121-0N070	Wire, Engine	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82122-0N030	Wire, Engine, No.2	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82123-0N030	Wire, Engine, No.3	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82124-0N020	Wire, Engine, No.4	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82125-30591	Wire, Engine, No.5	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82126-78010	Wire, Engine	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82127-30060	Wire, Engine, No.7	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82128-30010	Wire, Engine, No.8	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82219-30040	Wire, Sensor	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82284-0N030	Wire, Earth	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82286-0N030	Wire, Earth, No.2	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82815-0N040	Cover, Wiring Harness Protector	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82815-0N050	Cover, Wiring Harness Protector	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82815-0N060	Cover, Wiring Harness Protector No.5	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82815-0N070	Cover, Wiring Harness Protector No.6	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82815-0N080	Cover, Wiring Harness Protector, No.7	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82815-0N090	Cover, Wiring Harness Protector, No.8	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82815-0N100	Cover, Wiring Harness Protector, No.9	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N080	Protector, Wiring Harness, No.8	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N090	Protector, Wiring Harness, No.9	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N100	Protector, Wiring Harness, No.10	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N110	Protector, Wiring Harness, No.11	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N120	Protector, Wiring Harness, No.12	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N130	Protector, Wiring Harness, No.13	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N140	Protector, Wiring Harness, No.6	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82817-0N220	Protector, Wiring Harness, No.14	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
82823-30090	Cap, Terminal, No.3	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
89656-30030	Wire, Power Steering Earth	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90119-06995	BOLT WWASHER	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90119-C0096	New Genuine Part	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90119-C0098	New Genuine Part	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90119-C0100	New Genuine Part	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90119-C0132	New Genuine Part	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90119-C0204	New Genuine Part	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90119-C0208	New Genuine Part	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90126-A0014	Bolt, Stud(For Oil Strainer)	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90178-C0032	Nut, Wire Adjusting, No.1	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
90182-C0006	Nut (For Rear Wiper Arm Setting)	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([08.2015 - ] ENGINE (1508- )ARS212)
