ARS212

Toyota CROWN-MAJESTA · 2015 · 3,618 parts · 199 categories
ARS212 ×

← Back to categories

3,618 items

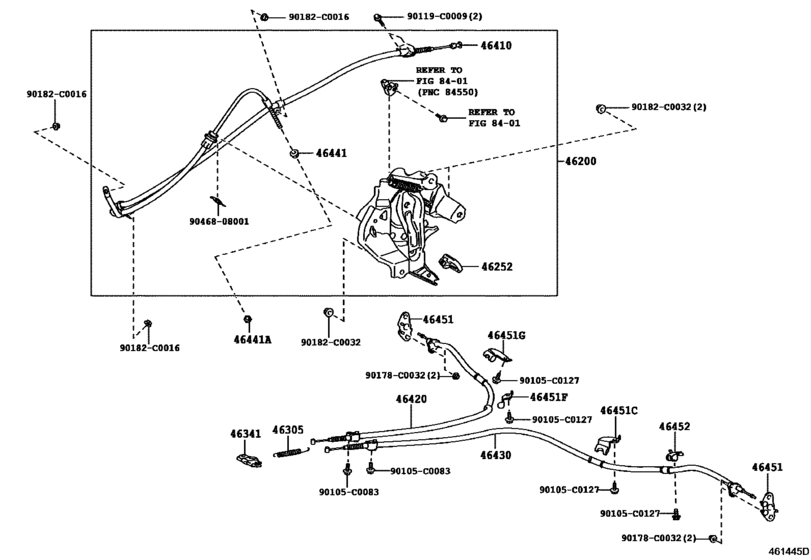

Parking Brake & Cable ([01.2015 - ] (1501- )) 34
#OEMPart name
46200 46200-0N010 Pedal Assy, Parking Brake Control
46252 46252-22010 Pad, Parking Pedal
46305 46305-50020 Spring, Parking Brake Return W/damper
46341 46341-0P010 Equalizer, Parking Brake
46410 46410-30810 Cable Assy, Parking Brake, No.1
46420 46420-0N010 Cable Assy, Parking Brake, No.2
46441 46441-12010 Nut, Wire Adjusting, No.1
46441 90178-C0032 Nut, Wire Adjusting, No.1
46451 46451-50050 Clamp, No.5(For Parking Brake Cable)
46451 46451-30180 Bracket, Parking Brake Cable Support, No.1
46451 46451-53010 Bracket, Cable Support
46451 46451-30190 Bracket, Cable Support
46452 46451-30200 Bracket, Parking Brake Cable Support, No.2
46503 46503-0N010 Plate Sub-Assy, Parking Brake, Rh
46504 46504-0N010 Plate Sub-Assy, Parking Brake, Lh
46505 46505-0N011 Block Sub-Assy, Parking Brake Anchor
46540 46530-30011 Shoe Assy, Parking Brake, Rh Or Center No.1
46550 90016-AY105 Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90016-AY104 Spring, Tension, No.2(For Parking Brake Shoe Return)
46601 46601-50050 Lever Sub-Assy, Parking Brake Shoe, Rh
46602 46602-50050 Lever Sub-Assy, Parking Brake Shoe, Lh
47405 47405-32010 Screw Set, Shoe Adjusting, Rh(For Parking Brake)
47406 47406-32010 Screw Set, Shoe Adjusting, Lh(For Parking Brake)
47447 47447-10020 Pin, Shoe Hold Down Spring(For Front Brake)
47447 90016-AY007 Spring, Compression, No.1(For Parking Brake Shoe Hold Down)
47449 47449-30030 Cup, Brake Shoe Hold Down
90105 90105-C0083 New Genuine Part
90105 90105-C0127 New Genuine Part
90119 90119-C0009 New Genuine Part
90178 90178-C0018 Nut(For Front Stabilizer Link)
90182 90182-C0016 New Genuine Part
90182 90182-C0032 New Genuine Part
9046808001 90468-08001 CLIP
9415121241 94151-21241 Nut(For Front Stabilizer Link)
