ARS212

Toyota CROWN-MAJESTA · 2015 · 3,618 parts · 199 categories

← Back to categories

3,618 items

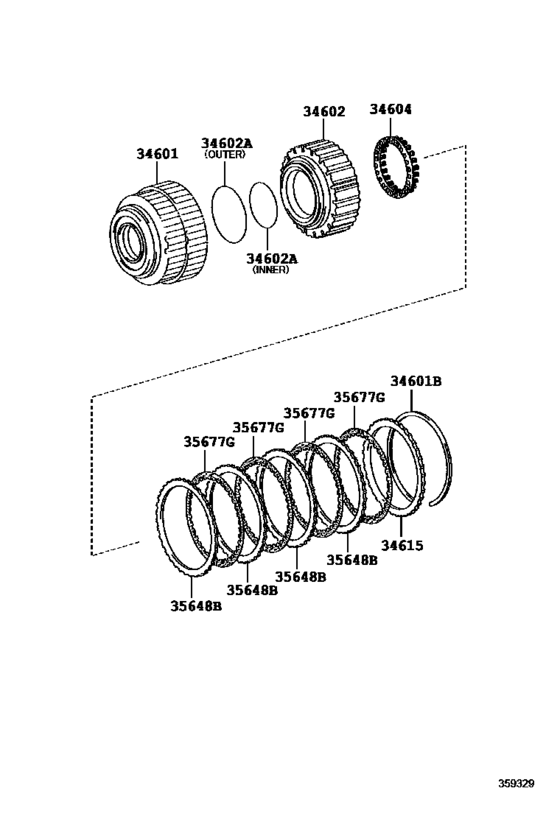

Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212) 15

#	OEM	Part name
34601	35601-53010	Drum Sub-Assy, Overdrive Direct Clutch
34601	90521-99141	Ring, Shaft Snap (For Overdrive Direct Clutch)
34602	35612-50040	Piston Sub-Assy, Overdrive Direct Clutch
34602	90301-77002	Ring, O (For Overdrive Direct Clutch Piston)
34602	90301-99086	Ring, O (For Overdrive Direct Clutch Piston)
34604	34604-50020	Spring Sub-Assy, Overdrive Clutch Return
34615	34615-50060	Flange, Overdrive Clutch
34615	34615-50070	Flange, Overdrive Clutch
34615	34615-50080	Flange, Overdrive Clutch
34615	34615-50090	Flange, Overdrive Clutch
34615	34615-50100	Flange, Overdrive Clutch
34615	34615-50110	Flange, Overdrive Clutch
34615	34615-50120	Flange, Overdrive Clutch
35648	35648-50020	Plate, Clutch (For Overdrive Brake)
35677	35677-30200	Disc, Clutch, No.3 (For Overdrive)

OEM	Part name	Category
34604-50020	Spring Sub-Assy, Overdrive Clutch Return	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
34615-50060	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
34615-50070	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
34615-50080	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
34615-50090	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
34615-50100	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
34615-50110	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
34615-50120	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
35601-53010	Drum Sub-Assy, Overdrive Direct Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
35612-50040	Piston Sub-Assy, Overdrive Direct Clutch	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
35648-50020	Plate, Clutch (For Overdrive Brake)	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
35677-30200	Disc, Clutch, No.3 (For Overdrive)	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
90301-77002	Ring, O (For Overdrive Direct Clutch Piston)	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
90301-99086	Ring, O (For Overdrive Direct Clutch Piston)	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
90521-99141	Ring, Shaft Snap (For Overdrive Direct Clutch)	Overdrive Gear (Atm) ([08.2015 - ] AA81E (1508- )ARS212)
