Search › Model › ARS212

ARS212

Toyota CROWN-MAJESTA · 2015 · 3,618 parts · 199 categories
ARS212 ×

← Back to categories

3,618 items

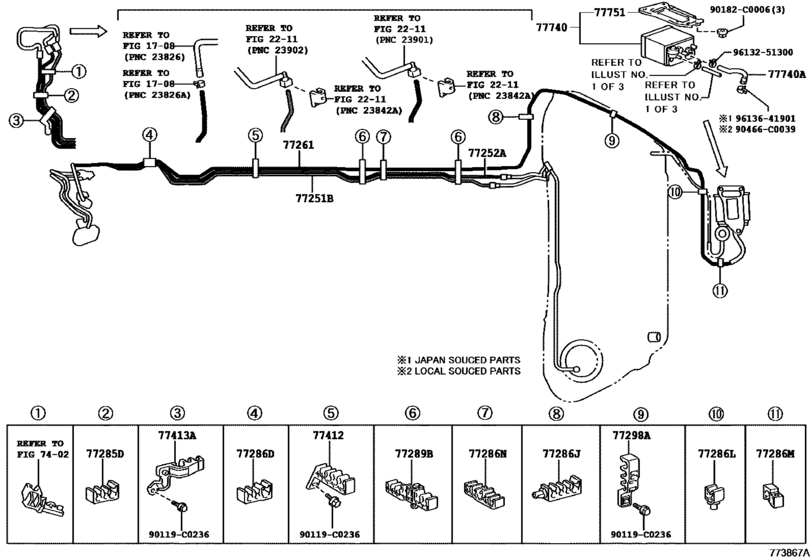

Fuel Tank & Tube ([08.2015 - ] FUEL TUBE (1508- )ARS212) 21
#OEMPart name
77251 77251-0N050 Tube, Fuel Main
77252 77252-0N010 Tube, Fuel Main, No.2
77261 77261-0N050 Tube Sub-Assy, Fuel Emission
77285 77286-0N080 Clamp, Fuel Tube, No.1
77286 77286-0N040 Clamp, Fuel Tube, No.2
77286 77286-0N050 Clamp, Fuel Tube, No.4
77286 77286-0N060 Clamp, Fuel Tube, No.5
77286 77285-0N020 Clamp, Fuel Tube, No.6
77286 77286-0N090 Clamp, Fuel Tube, No.3
77289 77289-0N021 Clamp, Fuel Tube, No.3
77298 77298-0N020 Clamp, Fuel Tube, No.4
77412 77412-0N020 Support, Fuel Tube Grommet, No.2
77413 77413-0N020 Support, Fuel Tube Grommet, No.3
77740 77740-0N020 Canister Assy, Charcoal
77740 23829-0V030 Hose, Fuel, No.1(For Charcoal Canister)
77751 77751-0N010 Bracket, Charcoal Canister Base
90119 90119-C0236 New Genuine Part
90182 90182-C0006 Nut (For Rear Wiper Arm Setting)
90466 90466-C0039 Clip(For Water By-Pass Hose No.2)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613641901 96136-41901 Clip Or Clamp(For Ventilation Hose)
