Search › Model › ARS212
ARS212

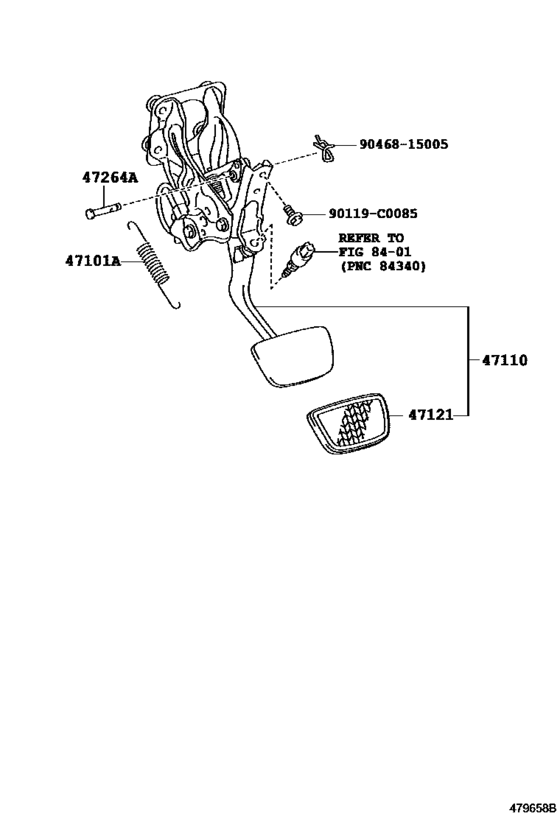

Brake Pedal & Bracket ([01.2015 - ] (1501- )) 6
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-13009 | Spring(For Brake Pedal Return) |
| 47110 | 47110-0N040 | Support Assy, Brake Pedal |
| 47121 | 47121-30080 | Pad, Brake Pedal |
| 47264 | 90249-06180 | Pin(For Push Rod) |
| 90119 | 90119-C0085 | New Genuine Part |
| 9046815005 | 90468-15005 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 47110-0N040 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([01.2015 - ] (1501- )) |
| 47121-30080 | Pad, Brake Pedal | Brake Pedal & Bracket ([01.2015 - ] (1501- )) |
| 90119-C0085 | New Genuine Part | Brake Pedal & Bracket ([01.2015 - ] (1501- )) |
| 90249-06180 | Pin(For Push Rod) | Brake Pedal & Bracket ([01.2015 - ] (1501- )) |
| 90468-15005 | CLIP | Brake Pedal & Bracket ([01.2015 - ] (1501- )) |
| 90507-13009 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([01.2015 - ] (1501- )) |
