Search › Model › ARS210
ARS210

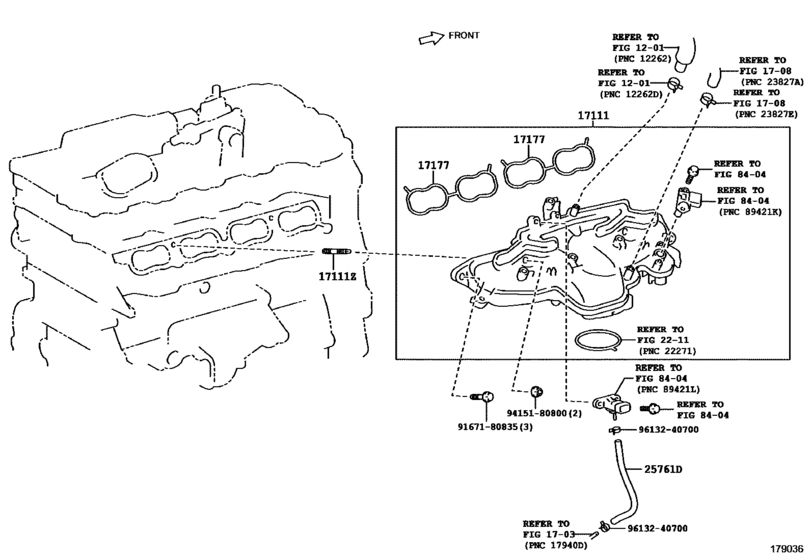

Manifold ([09.2015 - ] ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ (1509- )8ARFTS) 6
| # | OEM | Part name |
|---|---|---|
| 17111 | 17101-36082 | Manifold, Intake |
| 17111 | 90126-08062 | Bolt, Stud(For Intake Manifold To Cylinder Head) |
| 17177 | 17171-36040 | Gasket, Intake Manifold To Head, No.1 |
| 9167180835 | 91671-80835 | Bolt, Compressor, No.1 |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) |
| 9613240700 | 96132-40700 | Clip(For Fuel Vapor Feed Hose) |
| OEM | Part name | Category |
|---|---|---|
| 17101-36082 | Manifold, Intake | Manifold ([09.2015 - ] ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ (1509- )8ARFTS) |
| 17171-36040 | Gasket, Intake Manifold To Head, No.1 | Manifold ([09.2015 - ] ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ (1509- )8ARFTS) |
| 90126-08062 | Bolt, Stud(For Intake Manifold To Cylinder Head) | Manifold ([09.2015 - ] ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ (1509- )8ARFTS) |
| 91671-80835 | Bolt, Compressor, No.1 | Manifold ([09.2015 - ] ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ (1509- )8ARFTS) |
| 94151-80800 | Nut (For Transmission Control Cable) | Manifold ([09.2015 - ] ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ (1509- )8ARFTS) |
| 96132-40700 | Clip(For Fuel Vapor Feed Hose) | Manifold ([09.2015 - ] ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ (1509- )8ARFTS) |
