Search › Model › ARS210
ARS210

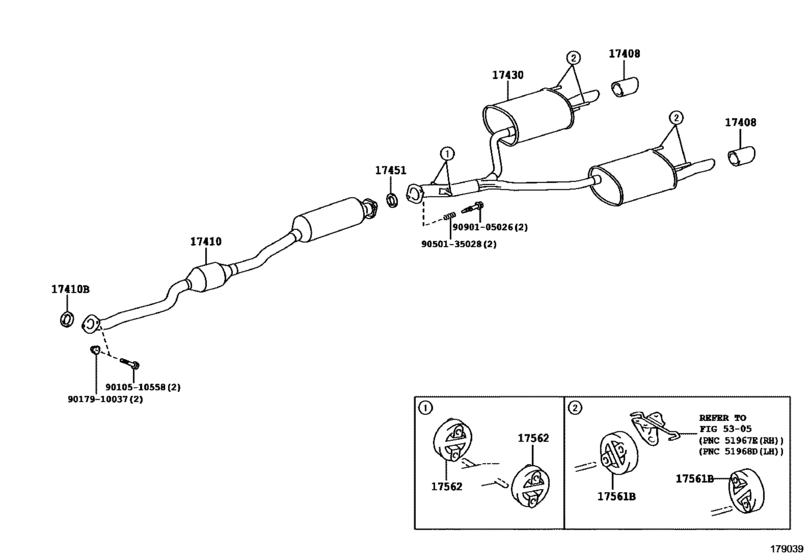

Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) 12
| # | OEM | Part name |
|---|---|---|
| 17408 | 17408-74080 | Baffle Sub Assy, Exhaust Tail Pipe |
| 17410 | 17410-36490 | Pipe Assy, Exhaust, Front |
| 17410 | 90917-06090 | Gasket, Exhaust Pipe |
| 17430 | 17430-36440 | Pipe Assy, Exhaust, Tail |
| 17451 | 17451-31012 | Gasket, Exhaust Pipe, Center |
| 17561 | 17565-22030 | Support, Exhaust Pipe, No.1 |
| 17562 | 17565-22040 | Support, Exhaust Pipe, No.1 |
| 9010510558 | 90105-10558 | BOLT FLANGE |
| 9017910037 | 90179-10037 | NUT |
| 9017910037 | 90179-10128 | NUT |
| 9050135028 | 90501-35028 | Spring, Exhaust Pipe |
| 9090105026 | 90901-05026 | Bolt, Exhaust Pipe Support |
| OEM | Part name | Category |
|---|---|---|
| 17408-74080 | Baffle Sub Assy, Exhaust Tail Pipe | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 17410-36490 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 17430-36440 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 17451-31012 | Gasket, Exhaust Pipe, Center | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 17565-22030 | Support, Exhaust Pipe, No.1 | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 17565-22040 | Support, Exhaust Pipe, No.1 | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 90105-10558 | BOLT FLANGE | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 90179-10037 | NUT | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 90179-10128 | NUT | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 90501-35028 | Spring, Exhaust Pipe | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 90901-05026 | Bolt, Exhaust Pipe Support | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
| 90917-06090 | Gasket, Exhaust Pipe | Exhaust Pipe ([09.2015 - ] (1509- )8ARFTS) |
