Search › Model › AP1
AP1

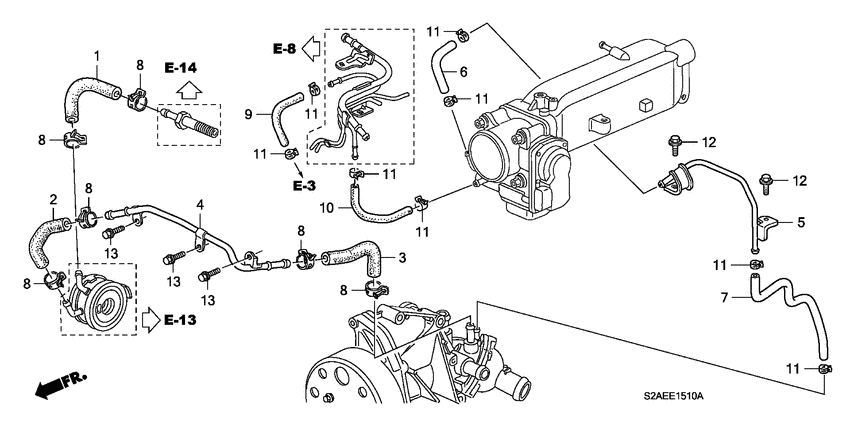

Water hose 10
| # | OEM | Part name |
|---|---|---|
| 1 | 19422-PCX-000 | Hose - OIL COOLER IN. |
| 2 | 19423-PCX-000 | Hose a - OIL COOLER OUTLET |
| 3 | 19424-PCX-000 | Hose b - OIL COOLER OUTLET |
| 4 | 19426-PCX-000 | Pipe comp - OIL COOLER |
| 5 | 19505-PZX-000 | Pipe comp - CONNECTING |
| 6 | 19507-PZX-000 | Hose - THROTTLE BODY OUTLET |
| 7 | 19508-PZX-000 | Hose - OUTLET |
| 8 | 19512-PK2-003 | Clip - HOSE, 18.7MM |
| 9 | 19514-PZX-000 | Hose a - BREATHER HEATER |
| 10 | 19515-PZX-000 | Hose b - BREATHER HEATER |
| OEM | Part name | Category |
|---|---|---|
| 19422-PCX-000 | Hose - OIL COOLER IN. | Water hose |
| 19423-PCX-000 | Hose a - OIL COOLER OUTLET | Water hose |
| 19424-PCX-000 | Hose b - OIL COOLER OUTLET | Water hose |
| 19426-PCX-000 | Pipe comp - OIL COOLER | Water hose |
| 19505-PZX-000 | Pipe comp - CONNECTING | Water hose |
| 19507-PZX-000 | Hose - THROTTLE BODY OUTLET | Water hose |
| 19508-PZX-000 | Hose - OUTLET | Water hose |
| 19512-PK2-003 | Clip - HOSE, 18.7MM | Water hose |
| 19514-PZX-000 | Hose a - BREATHER HEATER | Water hose |
| 19515-PZX-000 | Hose b - BREATHER HEATER | Water hose |
