AP1

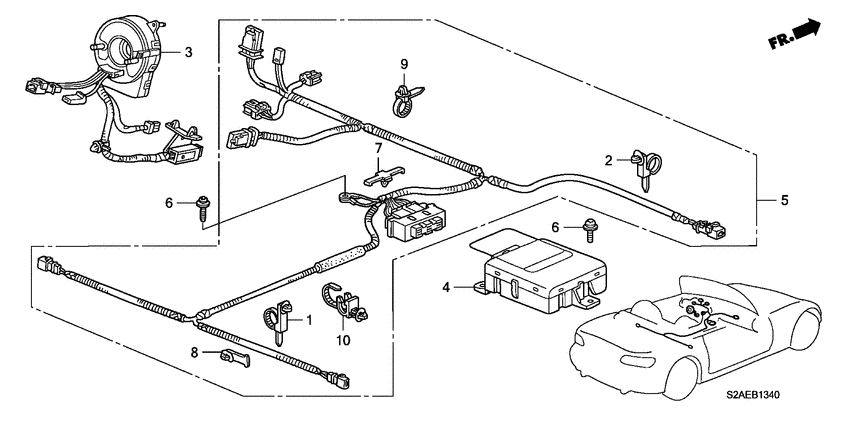

Srs unit (LH) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 2 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 3 | 77900-S2A-E01 | Reel assy - CABLE |
| 4 | 77960-S2A-E81 | Srs unit |
| 5 | 77961-S2A-G02 | Harness - SRS MAIN |
| 6 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 |
| 7 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 8 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 9 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 10 | 91563-SF4-003 | Band - WIRE HARNESS (WHITE) (100.5MM) |
| OEM | Part name | Category |
|---|---|---|
| 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Srs unit (LH) |
| 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Srs unit (LH) |
| 77900-S2A-E01 | Reel assy - CABLE | Srs unit (LH) |
| 77960-S2A-E81 | Srs unit | Srs unit (LH) |
| 77961-S2A-G02 | Harness - SRS MAIN | Srs unit (LH) |
| 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Srs unit (LH) |
| 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Srs unit (LH) |
| 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Srs unit (LH) |
| 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Srs unit (LH) |
| 91563-SF4-003 | Band - WIRE HARNESS (WHITE) (100.5MM) | Srs unit (LH) |
